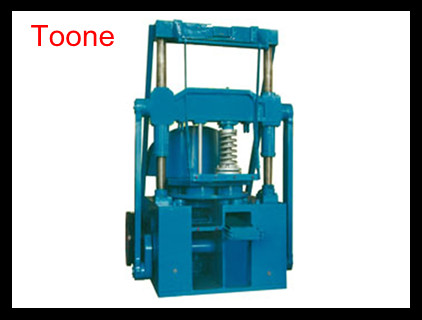

Double column closed 220 coal briquette machine
Specifications
- Brand
- Toone
- Origin
- China
- Certifications
- ISO
- MOQ
- 1 set
- Packaging
- Standard export package and fumigation-free wooden cases
- Price Term
- EX-Work,FOB,CIF,etc
- Payment Term
- T/T,L/C
- Supply Ability
- 10 sets / week
- Delivery Time
- About 30 days
- Loading Ports
- Qingdao,Tianjin,Shanghai,etc
- Guarantee
- Six month including wearing parts
Double column closed 220 coal briquette machine is a Machinery product. Key specs — Brand: Toone; Origin: China; Certifications: ISO; MOQ: 1 set.
Product Description
Closed 220 honeycomb briquette machine This machine is simple in structure, divided into the body, rotating, feeding, punching, conveying five parts. The platen, the base of the body, which formed the skeleton entity of the machine. Various parts complement each other, coordinated operation.
220 type honeycomb briquette machine can produce round or square honeycomb briquet with specifications of diameter below 220 mm, height below 100 mm. Common section size is Φ220, Φ180,φ150,φ160, Φ140, 125 x 125,etc, height is 100mm, 80mm, 75mm.
Can also produce various specifications of the honeycomb briquet which produced by 220mm following honeycomb machine. Double column closed 220 honeycomb briquette machine productivity 30Blocks / min Motor 4-pole 11 kw Coal ball type Circular: below Ф220 mm Square: below200 *200 mm
