Listing ID#10104186
ModelRGDF-120B
CategoryPackaging Machines

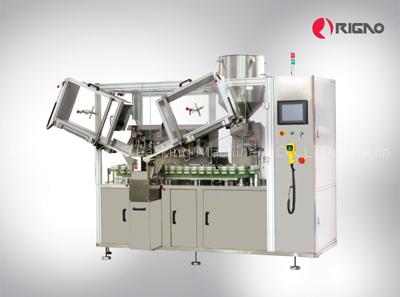

Double Heads Tube Filling and Sealing Machine
Specifications
- Origin
- China (Mainland)
Quick answer
Double Heads Tube Filling and Sealing Machine is a Packaging Machines product. Key specs — Origin: China (Mainland).
Product Description
- Introduction: RGDF-120B The automatic tube filling and sealing machine is mainly used to filling ointment or viscous fluid materials into Aluminum tube, plastic tube or laminated tube. And then seal the tubes tail. Which machine adopts a new type dosing pump with stainless steel butterfly valve which matches with screw tiny adjustment outfit. Measure exactitude also in compliance with the standard of GMP requirement. Adopt PLC program-able control as well as Photoelectricity identify outfit, orientation accurately and reliably, hange frequency to control the machine speed, Used Ferguson System drives and international advanced tube sealing system. Tube material : (Aluminum/Plastic iaminated tube) Tube seat quantity : 40(Seat) Tube diameter: 20~40 mm Sealing systems: (Machanic fold/Hot air) Filling capacity: 30~200 ml Capacity: 100-120(Tubes/min) Motor power :2.3 Kw Speed adjusting: By transducer Dimension(L×W×H): 2950×310×300 mm Weight: 3000 kgs Air pressure: 0.5-0.7MPa Dimension: 9.5kW Tube Length: 180mm(Max. Length )
