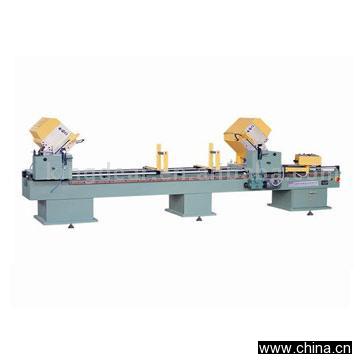

Double-Head Cutting Saw

Model No.:LJZ2-450X3700 Product Origin:China Brand Name:Kingdear Price Terms: Payment Terms: Certification: Description:Features:1) Used for aluminum profile cutting2) Carbide saw blade gives accurate processing and high endurance3) The two heads can work independently and simultaneously4) Cutting off the required length and two end angles are available by one timeprocessingProcessing accuracy:1) Repeat locating length: ≤0.2mm2) Cutting angle allowance: ±5'3) Cutting profile surface planeness: ≤0.10mm4) Cutting profile surface roughness: Ra12.5μmTechnical parameter1) Power supply: three phase, four line 380V, 50Hz2) Saw motor: 1.5kW x 2, 2,800r/min3) Pulling motor: 0.55kW, 1,400r/min4) Working pressure: 0.4 - 0.6MPa5) Air consumption: 200L/min6) Cutting length: max.

3,700mm; min. 400mm7) Cutting width: max. 120mm8) Cutting height: max. 200mm9) Cutting angle: -45° - 0° - 45°10) Cutter feeding speed: 0 - 3m/min11) Saw diameter specification: 450mm x 4mm x 30mm-12012) Overall dimensions: 4,500mm x 1,100mm x 1,400mm
