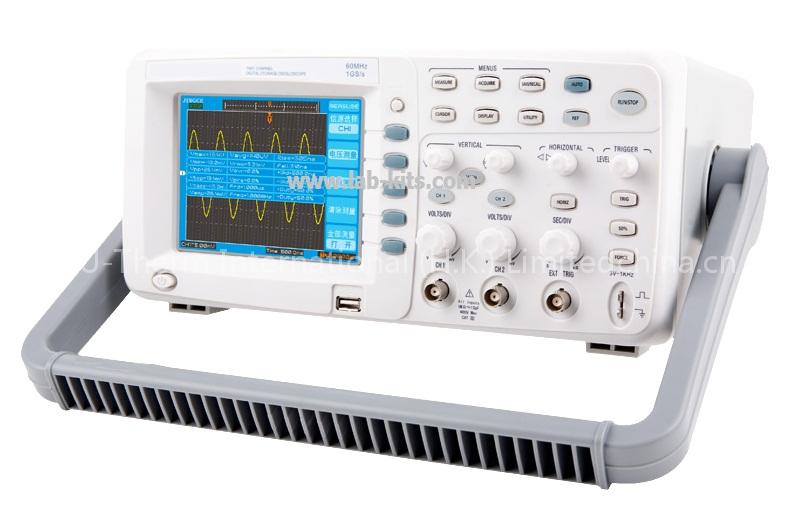

Digital storage Oscilloscope

Oscilloscopes are used in the sciences, medicine, engineering, telecommunications, and industry. General-purpose instruments are used for maintenance of electronic equipment and laboratory work. Special-purpose oscilloscopes may be used for such purposes as analyzing an automotive ignition system, or to display the waveform of the heartbeat as an electrocardiogram.

Humanness Functions:
	In order to protect the buttons and knobs on the instrument panel, avoid dust when storing. the instrument adds protection mask.		The instrument designs the storage container storing manual and accessories, more convenient to users.

• Easy to read with color or monochrome (NST) LCD display
• Dual channel,Bandwith 25 - 200MHz
• Sample Rate(Real - time)500MHz up to 1GSa/s,Equivalent Sampling 50GSa/s.
• 4K channel memory depth.
• Advanced Triggering function from edge,video,pulse,delay.
• + - × ÷ Mathematic Functions
• FFT spectrum analysis:Hanning,Hamming,Blacking,Rectangle
• Automatic Parameter Measurements:Vpp,Vamp,Vrms,Vmax,Vmin,Vtop,Vbase,
  Vavg,Freq,Period,Risetime, Falltime, +Width,-Width,Overshoot,Preshoot,+Duty,-Duty,etc.
• 10 Waveforms parameter Setups,Save,Reall.
• Vertical scale:2mV - 5V/div
• Sweep time:1ns - 50s/div
• Rise time:1.8ns - 14ns
• Power supply:100 - 240V,45 - 65Hz,<50W
• Dimensions:290(L)×330(W)×145(H)

Common Specifications:

Number of Channel: 2CH; Ext. Trig

Memory: 4K per channel

Vertical Sensitivity: 2mv/div-5v/div

Vertical Resolution: 8bits

Input Coupling: DC. AC. GND

Trigger Mode: Auto. Normal. Single

Trigger Type: Edge. TV. Pulse

Trigger Coupling: DC. AC. LF Rej. HF Rej

Horizontal Accuracy: ±0.01%

Math: + - × , FFT

FFT Window: Hanning. Hamming. Blackman. Rectangular

FFT Sample: 1024Points

Auto Measurement: Vpp. Vmax. Vmin. Vtop. Vbase. Vamp. Vrms. Vavg. Vover. Vpre

Freq. Period. Rise. Fall. +Width. -Width. +Duty. -Duty. DelayA. DelayB

Cursor Measure: Manual. Trace. Auto Measure

Storage: 10Wave forms.10 setups

I/O: USB device

Power: 100V-240V/50VA Max

Net Weight: 5kg

Size: 300(D) x312(W) x145(H)

Accessories: Probe x 2(1x.10x) Power Cord. User manual

Specifications:

Specifications		EM-OS-200B	EM-OS-150B	EM-OS-100B	EM-OS-60B	EM-OS-40B
Bandwidth		200MHz	150 MHz	100 MHz	60 MHz	40 MHz
Real time Sample Rate		1GS/S
Equivalent Sample Rate		50GS/S
Input Impedance		1MΩ//13pF 50Ω
Rise time		1.8ns	2.3 ns	3.5 ns	5.8 ns	8.8 ns
Time base Range		1ns/div-50s/div	2ns/div-50s/div		5ns/div-50s/div
X-Y Operation	Bandwidth	200MHz	150 MHz	100 MHz	60 MHz	40 MHz
	PhaseDHerence	±3degrees
Display		Color LCD(C)/Mono LCD(M)320x240

Specifications		EM-OS-150C	EM-OS-100C	EM-OS-60C	EM-OS-40C	EM-OS-25C
Bandwidth		150 MHz	100 MHz	60 MHz	40 MHz	25 MHz
Real time Sample Rate		500MS/S
Equivalent Sample Rate		50GS/S
Input Impedance		1MΩ//13pF 50Ω
Rise time		2.3 ns	3.5 ns	5.8 ns	8.8 ns	14ns
Time base Range		2ns/div-50s/div		5ns/div-50s/div		20ns/div-50ns
X-Y Operation	Bandwidth	150 MHz	100 MHz	60 MHz	40 MHz	25 MHz
	PhaseDHerence	±3degrees
Display		TFT/Color LCD(C)/Mono LCD(M)320x240

Common Specifications
Number of Channel		2CH;Ext.Trig
Memory		4K per channel
Vertical Sensitivity		2mv/div-5v/div
Vertical Resolution		8bits
Input Coupling		DC.AC.GND
Trigger Mode		Auto.Normal.Single
Trigger Type		Edge.TV.Pulse
Trigger Coupling		Rej
Horizontal Accuracy		±0.01%
Math		+ - × ,FFT
FFT	Window	Hanning.Hamming.Blackman.Rectangular
	Sample	1024Points
Auto Measurement		Vpp.Vmax.Vmin.Vtop.Vbase.Vamp.Vrms.Vavg.Vover.Vpre Freq.Period.Rise.Fall.+Width.-Width.+Duty.-Duty.DelayA.DelayB
Cursor Measure		Manual. Trace. Auto Measure
Storage		10Wave forms.10 setups
I/O		USB device
Power		100V-240V/50VA Max
Net Weight		5kg
Size		300(D)x312(W)x145(H)
Accessories		Probe x 2(1x.10x)Power Cord. User manual
