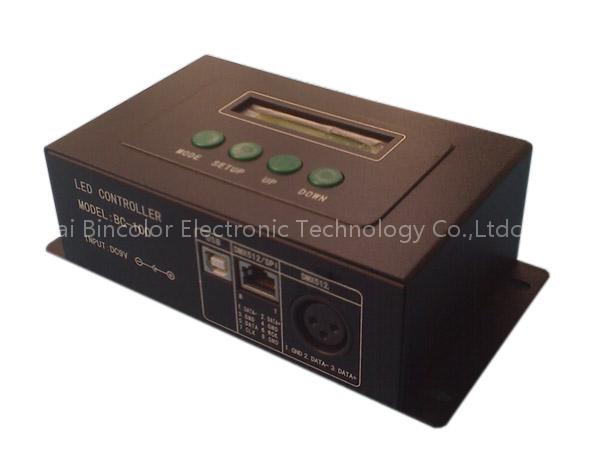

Digital controller with LCD screen
Specifications
- Brand
- Bincolor
- Origin
- China, Zhuhai
- Price Term
- FOB
Digital controller with LCD screen is a Dimmers product. Key specs — Brand: Bincolor; Origin: China, Zhuhai; Price Term: FOB.
Product Description
It can control LED lights with driving chips such as 74HC595, MB5026, DM134,DM135, SC16722, ZQ9712, etc.
BC-100-6803 digital controller is dedicated to control LED lights with chip LDP6803.
BC-100-DMX512 digital controller can control all LED lights which suits the DMX512/1990 standard interface.
These two controllers are compatible with protocol DMX512/1900. There are 30 modes such as “ static color” “ color jumping”, “color smooth, “ color flow”, “color chasing”, “entire color changing” etc, the changing modes and the control quantity can be preset at will, the running time, speed, etc. of every mode speed can be configured and saved separately & automatically.
Widely used for controlling LED digital tube, LED cluster, SMD follow spot flexible strip etc.
Product Parameter
Model | BC-100-SPI | BC-100-6803 | BC-100-DMX512 |
Input Voltage | DC9V | DC9V | DC9V |
Output signal | SPI(TTL) | LPD6803special protocol | DMX512/1990 |
Control Mode | 33 modes | 33 modes | 33 modes |
Control Qty | 3000 | 3000 | 170 |
Product Dimension | L160xW100xH50mm | L160xW100xH50mm | L160xW100xH50mm |
Weight (G.W) | 500g | 500g | 500g |
Please contact us for more information!
