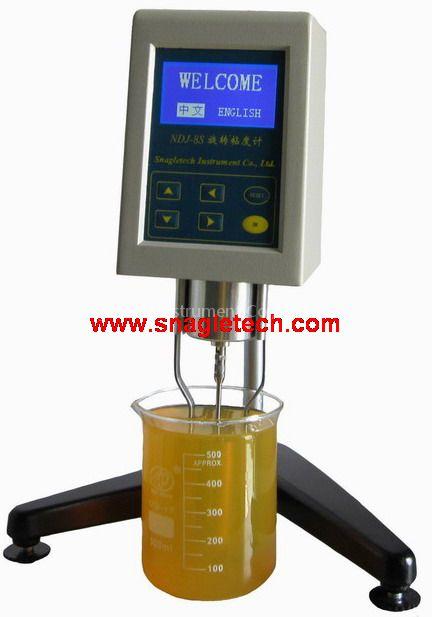

Digital Viscometer

NDJ-8S Digital Viscometer adopts advanced mechanical design technological, manufacturing engineering and micro computer control with exact data acquisition. With blue backlight and high light LCD display, the data display clear.

This viscometer testing instrument has the advantage of high measuring sensitivity, reliable testing result, convenient for operating and elegant design.

As a good testing instrument for testing the absolute viscosity of Newtonian liquid and apparent viscosity of non Newtonian liquid, it is widely used in the area of oil, paint, plastic, medicine, cosmetic and detergent to test all kinds of materials’ viscosity.Technical parameter: Model NDJ-8S

Measuring range 1 ~2×106mPa.s

Rotor specificatin 1-4# Rotor(remark: 0# rotor as optional accessory for low viscosity to 0.1mPa.s)

Rotor speed 0.3, 0.6, 1.5, 3, 6, 12, 30, 60 R/Minute

Gearshift Automatic gearshift for suitable rotor and rotor speed

Operation surface Chinese or English

Stable reading cursor Vertical block cursor fully display

Accuracy ±2%(Newtonian liquid)

Power AC 220V±10% 50Hz±10%

Working environment Temperature 5°C-35°C, relative humidity less than 80%

Dimension 370×325×280mm

Net weight 6.8㎏
