Production Info. :

·Automated calibration Automated gain
·Automated make video of test process and play
·DAC AVG & B scan, AWS function, 6dB DAC
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel Features : ·         Automated calibration of transducer Zero Offset and/or Velocity ；
·         Automated gainã€Peak Hold and Peak Memory；
·         Automated display precise flaw location(Depth dã€level pã€distance sã€amplitudeã€sz dBã€Ñ„)；
·         Automated switch three staff gauge ((Depth dã€level pã€distance s)；
·         100 independence setup, any criterion can be input freely, we can work in the scene without test block；
·         Big memory of 300 A graph and 30000 thickness value.
·         B scan；
·         RS232 port/ USB，communication with pc is easy；
·         The embeded software can be online updated；
·         Li battery, continue working time up to 10 hours;
·         Other assistant function;
·         Display freeze;
·         Automated echo degree;
·         Angles and K-value;
·         Lock and unlock function of system parameters;
·         Dormancy and screen savers;
·         Electronic clock calendar ;
·         Two gates setting and alarm indication;
·         High-speed capture and very low noise;
·         DACã€AVGã€B Scan ; Solid metal housing (IP65);
·         Automated make video of test process and play;
·         Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;

Main Technical Index:

Title	Parameter	Title	Parameter
Measuring Range（mm）	2.5 ～ 10000	Measurement Mode	Singleã€Dualã€Thru
Vertical Linearity Error	≤3%	Reject	0~80%
Horizontal Linearity Error	≤0.1%	Pulse Displacement（μs）	-20 ～ +3400
Sensitivity Leavings	60dB	Zero（μs）	0.0 ～ 99.99
Pulse Displacement	32dB	Port Type	BNC
Resolving Power	≥40	Operating Temperature (℃)	-20～50
Frequency Range（MHz）	0.5 ～ 20	H×W×D(mm)	240×180×50
Gain（dB）	0 ～ 110	Weight（kg）	1.8
Material Velocity（m/s）	1000 ～ 9999

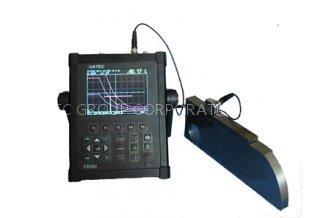

Digital Ultrasonic Flaw Detector FD201
