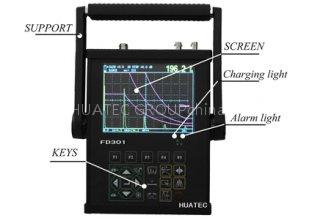

Digital Ultrasonic Flaw Detector

Detailed Product Description

Product Info.:

·Automated calibration Automated gain
·Automated make video of test process and play
·DAC AVG & B scan, AWS function, 6dB DAC
·High-speed capture and very low noise
·Solid metal housing (IP65)
·High contrast viewing of the waveform from bright
·Powerful pc software and reports can be export to excel through RS232/ USB interface

Features :
· Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,Ñ„)
· Automated switch three staff gauge ((Depth d,level p,distance s)
· Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity
· Convenient to make and use DAC and AVG to evaluate the echo, the curve can be modified and compensated
· 100 independence setup, any criterion can be input freely, we can work in the scene without test block

· Big memory of 300 A graph and 30000 thickness value
· Automated gain and gain scan
· Automated make video of test process and play
· Peak Hold and Peak Memory
· B scan
· Powerful pc software and reports can be export to excel
· The embeded software can be online updated
· Li battery, continue working time up to 10 hours

Other Assistant Function :
· Display freeze;
· Automated echo degree;
· Angles and K-value;
· Lock and unlock function of system parameters;
· Dormancy and screen savers;
· Electronic clock calendar ;
· Two gates setting and alarm indication;
· Gate and DAC alarm;

Specification :

Title	Parameter	Title	Parameter
Measuring Range(mm)	2.5 ~ 10000	Measurement Mode	Single,Dual,Thru
Vertical Linearity Error	≤3%	Reject	0~80%
Horizontal Linearity Error	≤0.1%	Pulse Displacement(μs)	-20 ~ +3400
Sensitivity Leavings	≥62dB	Zero(μs)	0.0 ~ 99.99
Dynamic range	≥34dB	Port Type	BNC
Resolving Power	≥36dB	Operating Temperature (℃)	-20~50
Frequency Range(MHz)	0.5 ~ 20	H×W×D(mm)	210×156×40
Gain(dB)	0 ~ 110	Weight(kg)	1.0
Material Velocity(m/s)	1000 ~ 13000

Sandard Delivery:

Main unit2.5MHZ-Ñ„20 straight probe4MHZ-8x9mm, 60degree angle probe4A/9Vpower adapterProbe connection cable (BNC to Lemo 01)Probe connection cable (BNC to Lemo 00)Instruction manualCarrying case Additional Accessories:Data managing software Data managing cables RS232 Straight probe (5MHZ-Ñ„20) Straight probe (2.5MHZ-Ñ„20) Straight probe (2.25MHZ-Ñ„20) Straight probe (1MHZ-Ñ„20) Angle probe (4MHZ-45degree, 8*9mm) Angle probe (4MHZ-60degree, 8*9mm) Angle probe (4MHZ-70degree, 8*9mm) Angle probe (4MHZ-80degree, 8*9mm) Angle probe (2MHZ-45degree, 8*9mm) Angle probe (2MHZ-60degree, 8*9mm) Angle probe (2MHZ-70degree, 8*9mm) Angle probe (2MHZ-80degree, 8*9mm) Probe T/R (5MHz-Ñ„20mm, focus 15mm) Probe T/R (2.5MHz-Ñ„20mm, focus 15mm) Connection cable to probe (BNC-BNC) Connection cable to probe (BNC-Lemo 00) Connection cable to probe (Lemo 01-BNC) Connection cable to probe Lemo 00-Lemo 01) Lithium ion battery Power adapter (4A/9V) Power Cable Leather case
