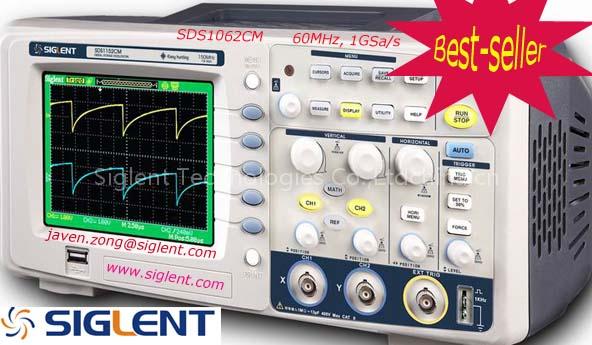

Digital Storage Oscilloscope(60MHz)

Application: 1.Design and debuge in electron circuitry 2.Industry controling and power measure moment signal in the manufacture 5.Education and trainning 6.Serving and maintaining

Technical parameters: Bandwidth: 60MHZ Channel: 2 channels+1 ext trig Real Time Sampling: 1GSa/s Equivalent Sampling Rate: 50GSa/s Memory Depth: 2Mpts Rise time: <5.8ns Input Impedance: 1M||17Pf Sec/div Range: 5ns/div-50s/div Roll:100ms-50s/div Vertical Sensitivity: 2mv-10v/div(1-2-5 sequence) Vertical Resolution: 8bit Display : Color TFT(320*234)5.7" LCD

Detailed specifications: Display: 8*12 divides Waveform Capture Rate:The highest capture rate exceed 1000 times/sec Input coupling: DC, AC, GND Input Max voltage: 400V(Vpp) Trigger Types: Edge, Pulse, Video, Slope, Alternative Trigger Modes: Auto, Normal, Single Trigger Source: CH1,CH2,Ext,Ext/5,AC Line Cousor measure: Manual, Track, Auto Sample Types: Real Time, Equivalent Time Averages: 4,16,32,64,128,256 Math: +,-,*,Invert Support the sampling rate : 5KSa/s-1GSa/s (in a 1-2-5 sequence) Display Model: Main, Window, Window Zoom, Roll, X-Y Menu Display: 2Sec, 5Sec, 10Sec, 20Sec, Infinite Languages: Chinese, English, Spanish, Russian, Portuguese etc.

Power Source Voltage: 100-240VAC,47HZ-440HZ,50VA Max Dimension: 305mm x 154mm x133mm Weight: 2.3kg
