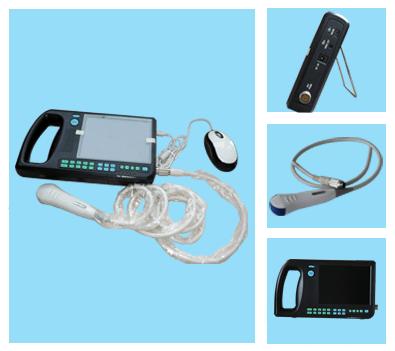

Digital PalmSmart Uitrasound Scanner

Introduction This equipment is high resolution linear/convex ultrasound scanner.

It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time dynamic receiving focusing (DRF), digital frequency scan (DFS), frame correlation technologies.The device is suitable for ultrasonic examination on abdominal and pelvic cavity organs.

Main Features ■Video output offers connection to external video image printer and large-screen display and other equipments ■High speed USB port provides real time image transfer to the PC ■Combined power supply mode of AC adapter and built-in chargeable battery ■the low power consumption and advanced power management technology promise more lasting battery operation ■Field programmable gate array and surface mounted technology make this equipment compact and light in weight ■Jet molding enclosure with hand-held structure

Main Performance Display mode: B, 2B, BM, M, 4B Image gray scale: 256 Scale Monitor size: 7 Inch TFT LCD Depth of penetration: ≥ 140 mm Dead zone: ≤ 6 mm Geometric: Horizontal ≤ 7.5% Vertical ≤ 5% Resolution: Lateral ≤3 (Depth≤80) ≤5 (80＜Depth≤130) Axial ≤1 (Depth≤80) Image conversion: Up/down, left/right, black/white Image storage: 64 Frame Cine loop: ≥400 Frame Body mark: 40 Software: Obstetric, cardiology Interface: USB2.0, VIDEO, MOUSE Measurement: Distance, circumference, area, volume, gestational age, expected date

Standrad Configuration 3.5 MHz Convex Probe Probe Frequency:2.5-5.0 MHz Applications: Abdominal organs examination

Optional Configuration 7.5 MHz Linear Probe Probe Frequency:6.5-8.5 MHz Applications: Small part examination 5.0 MHz Micro-Convex Probe Probe Frequency:4.0-5.5 MHz Applications: Heart examination 6.5 MHz Endorectal Linear Probe Probe Frequency:5.0-7.5 MHz Applications: Animal examination

Physical Identity Dimension: 265 (L) × 153 (W) × 46 (H) mm Weight: 0.8 kg

Qualification None
