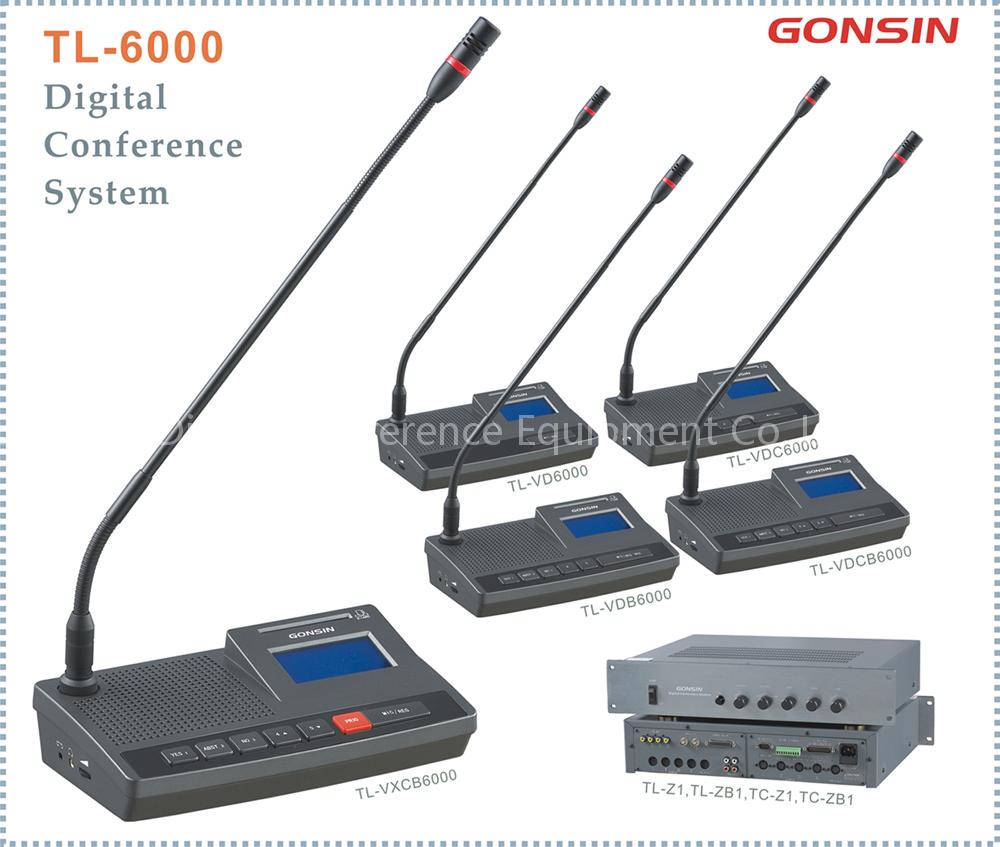

Digital Conference System (GONSIN TL-VCB6000)

Digital Conference System

[ Discussion + Interpretation + Voting + Video Tracking ]

GONSIN TL-VCB6000 digital conference system offers multi-functional conferencing solution integrated with microphone discussion, electronic voting, simultaneous interpretation, language distribution, attendance registration, chairman priority, LCD display, built-in loudspeaker, headphone monitoring, chipcard reading, camera tracking, digital recording and software control.

The basic system on one central control unit supports up to 60 delegate units, and can be expanded to 200 delegate units with additional extension units. Multiple control units can be cascaded together to form a system of up to 1000 delegate units.

The system can seamlessly interface with GONSIN IR/DSSS wireless transmission system to provide simultaneous language interpretation for additional participants.

Main Features

• Multiple selectable microphone modes
• Effective microphone management with excellent sound quality
• Attendance registration using IC card or mic button
• 1 chairman unit & 10 vice-chairman units can be used in a system
• Chairman/vice-chairman units can be active at any time
• Chairman unit can mute/override all active delegate units
• Simultaneous active delegate microphones from 1 to 4
• Any delegate unit can be preset as vice-chairman unit
• Delegates can select 6 channels to hear 6 interpreted languages
• Multiple voting types and options are available via software
• 4 dome cameras supported to track the speaking delegate
• HDD (hard disk drive) conference recording via PC/software

Delegate Unit TL-VDCB6000

Chairman Unit TL-VXCB6000

• Push button for attendance registration & MIC on/off
• Up/down buttons for language channel selection
• YES/NO/ABST, 1/2/3/4/5 numeric buttons for voting
• High quality gooseneck microphone
• LED red ring luminant to identify active microphone
• Built-in 2W/8Ω loudspeaker w/ level control
• 3.5 mm jacks for headphone & recording w/ level control
• Loudspeaker is turned off when MIC is on or phone is plugged in
• 65x32mm back-lit LCD screen
• Built-in chipcard reader for user identification
• Supports automatic video camera tracking
• Frequency response: 50-18000 Hz
• S/N ratio: -95dB/1mV
• Sensibility: -46±4dB
• Power input: 24V DC
• Pick-up range: up to 60 cm
• Standard stem length: 425 mm
• Dimensions: 205×60×130mm (W×H×D)
• Chairman unit with additional priority button
