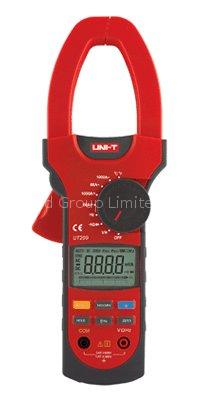

Digital Clamp Multimeters
Listing ID#10136898
CategoryIndustrial Power Supplies
Industrial Power Supplies

Digital Clamp Multimeters

Specifications

Brand
Uni-Trend
Origin
China (Mainland)
Request Quote
Quick answer

Digital Clamp Multimeters is a Industrial Power Supplies product. Key specs — Brand: Uni-Trend; Origin: China (Mainland).

Product Description

SPECIFICATIONS
Basic Functions of Digital Clamp MultimetersRangeBest Accuracy
DC Voltage400mV/4V/40V/400V/600V(0.8%+1)
AC Voltage400mV/4V/40V/400V/600V(1.2%+5)
DC Current40A/1000A(1.5%+8)
AC Current40A/1000A(2%+8)
Resistance400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ (1%+2)
Temperature

-40C~1000C
-40F~1832F
Frequency4kHz/40kHz/400kHz/4MHz/40MHz(1%+3)
Duty Cycle

0.1%~99.9%
Special Functions of Digital Clamp Multimeters
Auto Ranging
Diode
Continuity Buzzer
True RMS AC Voltage
Surge Current AC Current
Peak Max/Peak Min Mode
Max/Min Mode
Data Hold
Sleep Mode
Display Backlight
Full Icon Display
Low Battery Display
Input Impedance for AC Voltage MeasurementAround 10 M
Max. Display 4000
Analogue Bar Graph

GENERAL CHARACTERISTICS
Power of Digital Clamp Multimeters9V Alkaline Battery (1604A or 6LF22)
LCD Size47 x 30 mm
Product ColorRed and Grey
Product Net Weight 533g
Product Size285 x 105 x 45 mm
Standard Accessories Test Lead,Alkaline Battery,English Manual,Tool Box
Standard Individual PackingtGift Box
Standard Quantity Per Carton5 pcs
Standard Carton Measurement480 x 372 x 315 (0.056CBM Per Standard Carton)
Standard Carton Gross Weight11 kg

*Available at Extra Cost
Specifications and other information of Digital Clamp Multimeters are subject to change without further notice.
