Digital City
Specifications
- Brand
- 1997
- Origin
- China (Mainland)
- Price Term
- FOB
Digital City is a Refractory product. Key specs — Brand: 1997; Origin: China (Mainland); Price Term: FOB.
Product Description

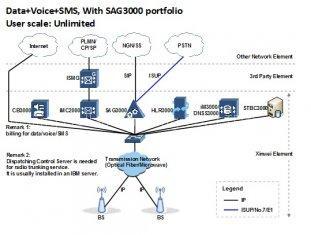

McWiLL possesses all the necessary features for a successful deployment of Digital City. McWiLL integrates functions of mobile phone, PTT, SMS, internet access, video and data transmission.
Advantages                                                                               Benefits
All IP architecture; Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Easy deployment and no backhaul block
Good performance of N=1 Networking; Â Â Â Â Â Â Â Â 5 MHz will be OK for effective deployment
                                                                               High data throughput;                     Â
                                                                               High frequency & equipment utilization
                                                                                good for internet, video and automation data Â
Big mobile phone capacity;                              Ready for public service                      Â
Professional PTT functions; Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Suitable for security, authorities and corporate
                                                                               users; Support city wide emergency network.
Sensitive signal system;Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Good penetration into buildings
Superior information security;Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Ensure the use of security and authorities
Good coverage; Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Keep performance under various interferences
Low cost
The system supports large scale networking and 80-150 KM/H mobility. The normal the planning considers 40% voice capacity, full PTT capacity and 2/6 of up/down.
Urban deployment:Â Â Â Â Â Â Â Â Three BTS (15MHz) cover a radius of 1-3 KM
Planning:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 150 voices, 60 PTT, 23Mbps down and 8Mbps up simultaneously
Supporting:                       Subscribers over 3000 mobile phones and 240 PTT groups   Â
Data intensive area: Â Â Â Â Â Â Â Three Microcell BTS (15MHz) cover a radius of 0.5-1 KM
Planning:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 36 voices, 15 PTT, 23Mbps down and 8Mbps up simultaneously
Supporting:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Subscribers over 800 mobile phones and 60 PTT groups
Suburban area:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Three BTS (15MHz) cover a radius of 3 -10 KM
Planning:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 150 voices, 60 PTT, 21Mbps down and 7Mbps up simultaneously
Supporting:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Subscribers over 3000 mobile phones and 240 PTT groups
Emergency van:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â A middle size van with Macrocell BTS and satellite backhaul
 Supporting:                       30 simultaneous talks, 4 PTT groups and 4 videos
In a video surveillance focusing or industrial area, up/down ratio could be 4/4 or others.
Scenario
A car is blocked in the street by flood. The mayor in the car opens HM 180 and pushes the button for traffic response group to have a video meeting. Several people outside of traffic response group join the meeting on request. The PTT group is enlarged temporarily. During the meeting they checked the video surveillance of critical points. Some people try to support their views with surrounding situation shot by the HM180 in hands. The meeting enjoys a highest priority in McWiLL system. Soon after the meeting, the necessary actions become order on the McWill terminals of the managers of the relative department
