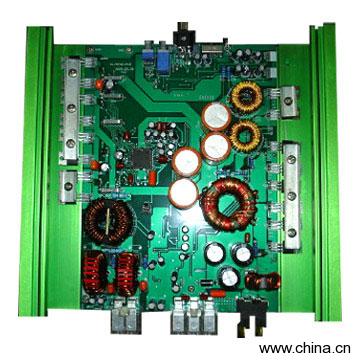

Digital Amplifier

Model No.:CL400 Product

Origin:China Brand

Name:

Price Terms:

Payment Terms:T/T, L/C

Certification: Description:

Specifications:1) Mono subwoofer amplifier2) 2Ω stable3) MOSFET power supply4) Class-D (PWM) system5) Double sided epoxy PCB circuit board6) Thermal, overload and short protection7) Soft turn on / off8) 200W RMS power into 4Ω9) 300W RMS power into 2Ω10) THD+N at 1W / 4Ω: 0.1%11) S/N ratio: 80db12) Frequency response: 10Hz - 350Hz (-3db)13) Variable crossover frequency: 40Hz - 350Hz14) Crossover slope: -12db / -24db15) Input sensitivity: 100mV - 8V16) Fuse rating: 20A x 217)

Power supply: DC 11-14.5 V; measured at 14V18) Dimensions (L x W x H):151 x 225 x 56mm
