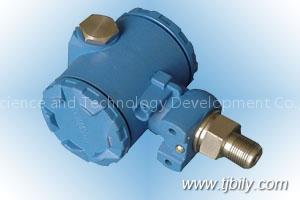

Diffusion Silicon Pressure Transmitter

PT Series products generic model, using imported silicon pressure sensors and high-performance CPU processor technology, has a unique temperature and linear compensation.

Structure then Minato, taking into account, light weight, easy to install, easy to use, maintenance-free; for a variety of occasions, bad weather is dangerous to the environment and all kinds of corrosive media; can measure a variety of corrosive and non-corrosive gas, liquid, widely used in the aviation, petroleum, chemical, metallurgy, electric power, light industry, machinery and other fields.

1, measurement range: the table below 2, working voltage: 12.5 ~ 36VDC 3 Accuracy class: ± 0.5%, ± 0.2% 4, medium temperature: 0 ~ 85 ℃ 5, the output signal :4-20mA (wire) ,1-5V (3 wire) 6, delay: better than 0.01% of full scale 7, stability: better than 0.1% / year 8, LCD / LED display (optional) 9, measurement medium: liquid, water or steam 10, connection: can be customized according to customer needs
