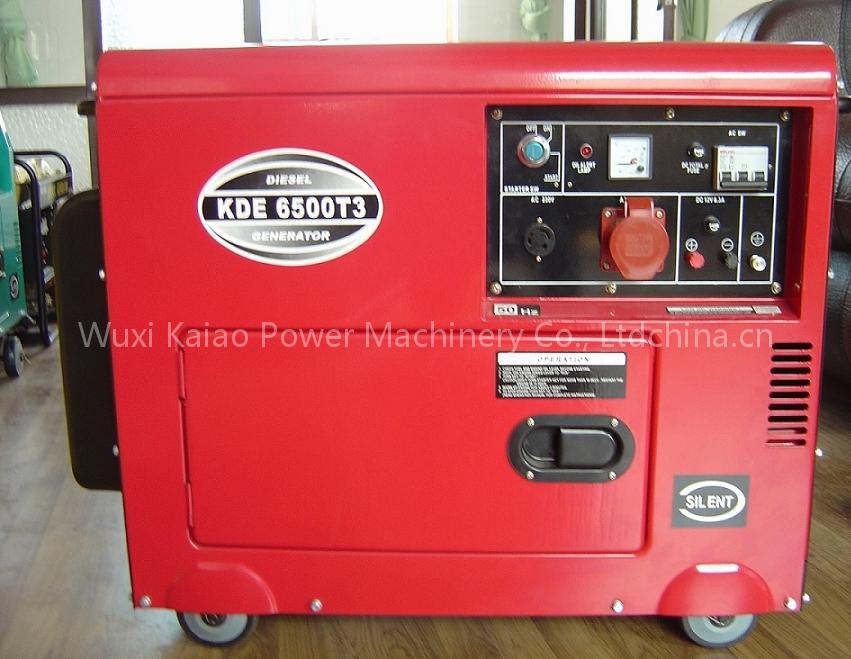

Diesel generator 6500T3
Specifications
- Brand
- Kaiao
- Origin
- China (Mainland)
Diesel generator 6500T3 is a Diesel Generators product. Key specs — Brand: Kaiao; Origin: China (Mainland).
Product Description
Diesel generator set
generator set KDE6500T3 CE Approved
5KW Slient generator
FrequencyHZ 50 60
Output power (kVA) 5.5 6.3
Max. power (kVA) 6 7
Voltage (V) 230/400 240/416
Current (A) 7.9 8.7
Rated speed (r/min) 3000 3600
Phase 3 Phase
Power factor 0.8
Excitation system Self-excited constant voltage(AVR)
Noise level7mdBA Type T:72
Fuel tank capacity(L) Type T:15
Structure Type T: silent
Panel Ordinary Panel
Output socket Two
Output terminal post No
DC12V output Terminal post
Net weight (kg) Type T:170
Dimension (L*W*H)(mm) T:970*558*768
Engine model KA186FA
Engine type Single-cylinder, vertical, four-stroke, air-cooled, direct injection
Cylinder Bore Diameter X stroke(mm) 86X72
Displacement (L) 0.418
Power (kW) 5.7/3000 6.3/3600
Fuel consumption rate(275.1 281.5
Compression ratio 19
Lubrication system Pressure splash Type
Engine starting system Type T: Electric starter
Diesel oil model Summer:0#, Winter:-10#
Lube oil model SAE10W-30 (above CD grade)
Lube oil capacity (L) 1.65
Battery capacity (V-AH) 12V-36Ah
