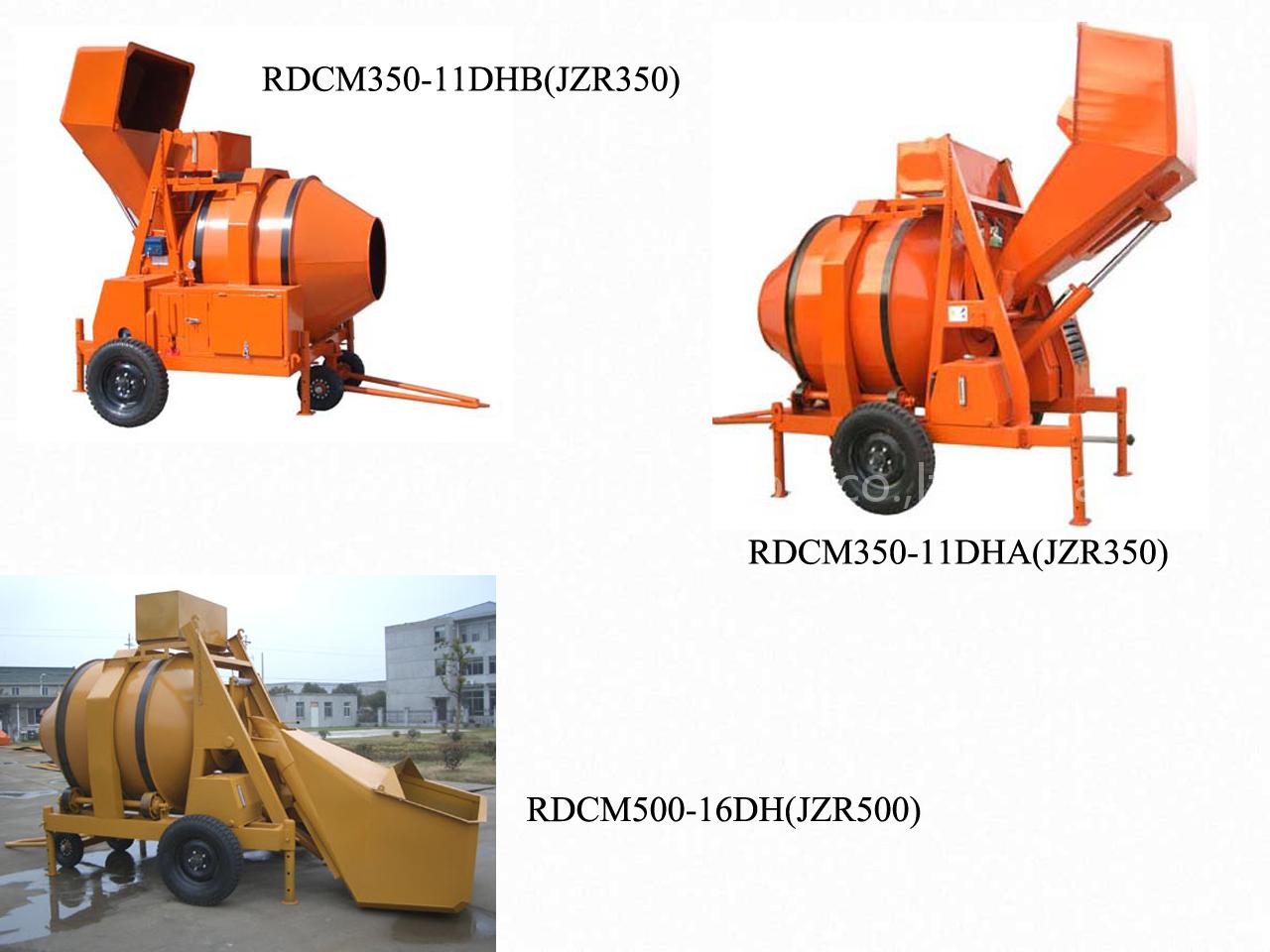

Diesel engine concrete mixer-hydraulic

Model: RDCM500-16DH(JZR500)
Capacity of discharging: 750L
Capacity of loading: 500L
Pump: Water pump (with water tank)
Drum rotating speed: 13r.p.m
Power source: YANMAR
Total power: 16.2kw
Gear case: Mechanical gear box with friction clutch
Dimension: 3750×2240×3800mm
Weight: 2050kg
Hydraulic tipping hopper

Model: RDCM350-11DHA(JZR350)
Capacity of discharging: 350L
Capacity of loading: 560L
Capacity of water tank: 110L
Drum rotating speed: 13r.p.m
Capacity per hour: 10-14m3/h
Powered of diesel engine: 15HP
Power source: Diesel engine,single cylinder,water-cooled with radiator With battery starter
Max. towing speed: 20Km/h
Overall size: 3250*2240*3200mm
Weight: 1790Kg
Hydraulic tipping hopper

Model:RDCM350-11DHB(JZR350)
Power: 15HP
Hopper hoisting system Hydraulic tipping system
Power source: Diesel engine/water-cooled
Capacity (unmixed): 500 liter / 17.5 cft
Capacity (mixed): 350 liter / 12.5 cft
Mixing time: 45 sec.
Water tank volume: 65 litres
Max. Aggregate Dia. 60mm
Max. trailed speed: 20km/h
Capacity Per Hour: 15 cum / 530 cuf
Driving axle Two wheel or four wheel
Dimension: 3250*2240*3200mm
Weight: 1840kg
