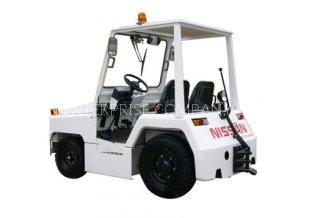

Diesel Towing Tractors QCD20-KM
Specifications
- Origin
- China (Mainland)
- Price Term
- FOB
Diesel Towing Tractors QCD20-KM is a Other Plastic & Rubber Machinery product. Key specs — Origin: China (Mainland); Price Term: FOB.
Product Description
Engine | Diesel | |||||
Model | QCD20-KM | QCD25-KM | ||||
Performance | Max．drawbar pull | KN | 20 | 25 | ||
Max．towing weight | single trailer | Kg | 26000 | 33000 | ||
(Dry concrete floor) | series trailers | 39000 | 49000 | |||
Max．travel speed | For ward | Km/h | 26 | |||
Reverse | 23 | |||||
Unload gradeability | % | 38 | ||||
Max．braking length | m | 5 | ||||
Overall dimensions | Overall length（with tow attachment） | mm | 3085 | |||
Overall width | 1440 | |||||
Overall height | 1440 | |||||
Front overhang | 640 | |||||
Rear overhang（with tow attachment） | 845 | |||||
Track front | 1230 | |||||
Track rear | 1190 | |||||
Wheel base | 1600 | |||||
Tow attachment height | 350/450 | |||||
Min．turning radius（outer） | 3265 | |||||
Min．ground clearance | 130 | |||||
Weight | Truck weight | Kg | 3550 | 4050 | ||
Unload axle weight | Front axle | 1100 | 1080 | |||
Rear axle | 2450 | 2970 | ||||
Engine | Model | NISSAN TD27 | ||||
Total displacement | cc | 2663 | ||||
Rated output | Kw/rpm | 44.1/2400 | ||||
Max．Torque | N·m/rpm | 172/1600 | ||||
Tyre | Front wheel | 650-10-10PR | ||||
Rear wheel | ||||||
