Listing ID#10043925
ModelSN6500DG(E)
CategoryDiesel Generators

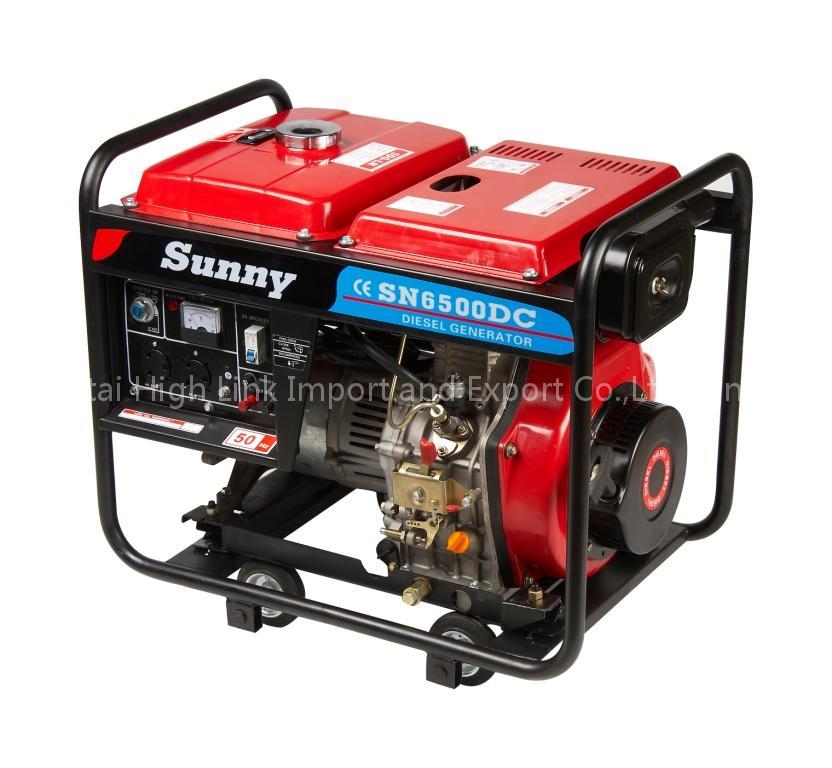

Diesel Generator SN6500DG(E)
Specifications
- Brand
- High Link
- Origin
- China (Mainland)
Quick answer
Diesel Generator SN6500DG(E) is a Diesel Generators product. Key specs — Brand: High Link; Origin: China (Mainland).
Product Description
| Model: | 2500DG(E) | 3500DG(E) | 6500DG(E) |
| Engine Model: | ZH170F | ZH178F | ZH186F |
| Type: | Single-cylinder,Vertical,4-stroke,Air-cooled,Direct-injection | ||
| Displacement: | 211 | 296 | 406 |
| Bore × Stroke(mm): | 70x55 | 78×62 | 86×70 |
| Condensation Ratio: | 20:01 | 20:01 | 19:01 |
| Starting System: | Recoil(Electric) starter | ||
| Fuel Tank Volume(L): | 6 | 15 | |
| Lube capacity(L): | 0.8 | 1.1 | |
| Max. Power(Kw): | 2 | 3.2 | 4.5 |
| Rated Power(Kw): | 1.7 | 2.8 | 4.2 |
| Rated Current(A): | 7.7 | 12.7 | 19 |
| Phase: | Single/Three phase | ||
| Power: | 220v/380v | ||
| DC Output: | 12V/8.3A | ||
| Power Factor: | 1/0.8 | ||
| Insulation Grade: | B | ||
| Structure type: | Open frame | ||
| Performance Grade: | G1 | ||
| N.W/G.W(kg): | 53/66 | 65/78 | 95/110 |
| Qty of 20'/40'/40'HQ: | 180/360/450 | 108/216/288 | |
| Dimension(mm): | 640×448×530 | 720×492×650 | |
