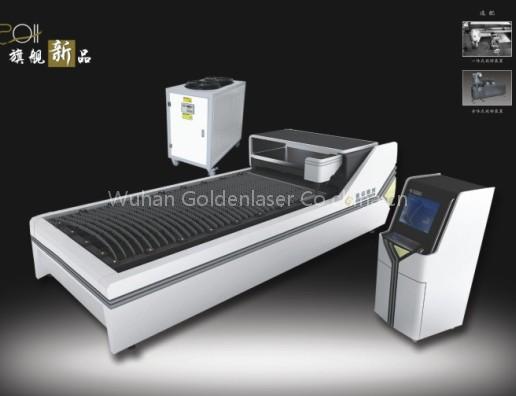

Die Board Metal laser cutting machine
Specifications
- Origin
- China
Die Board Metal laser cutting machine is a Other Laser Equipment product. Key specs — Origin: China.
Product Description
GJMSJG-130250 DT YAG Laser precision Cutting Machine Product Feature If equips with medium power lamp pump YAG laser, it can cut any arbitrary shape as you want in sheet metal within 1300mm * 2500mm.
Especially suitable for sheet metal cutting, high cutting speed and precision, cooperate with following dynamic auto-focus device, can realize cutting the material with different thickness by automatically focus. The working table has metal balls which can moving easily, to help you easily loading and unloading materials, largely save man power.
This equipment can select whole or detached rotary equipment
Application Field Suitable for all kinds of Precision cutting to metal material, sheet metals, kitchen ware, spare parts, component carbon steel, stainless steel, alloy steel, aluminum, alloys, aluminum sheet, golden, silver, Ti, tubes etc Technical Parameter Laser generator
YAG lamp pump laser
Laser power
500W
Cutting area
1300mm x 2500mm, 1500mm x 3000mm optional
Working table
Net saw-teeth work table
No load max speed
0-30000mm/min
repeating location
±0.1mm
Moving system
offline CNC system,servo motor,precision ball screw drive
Cooling system
18KW constant temperature water chiller
Power supply
380V±5%/50/60HZ
Supporting format
PLT, DXF, AI etc
Sdandard collocation
Following focus,550W following bottom exhaust
Select collocation
650W lamp pump
*Working area and laser power can be customized according to requirement.*
GoldenLaser Complete Solution for Metal Working *Auto-nesting *Fast pattern digitizing *Auto-recognition *Precision cutting *Unloading management *Marking and scribing *Polishing and painting *Metal marking *Multi-position marking solution *3D dynamic large-scale marking on different height object
---If you are interested in our products, please contact me(limu at goldenlaser.org) for quotation and offersheet. ---Please kindly let us know which industry you are in and what kind of materials you want to cut or processso we can recommend suitable model to you.
