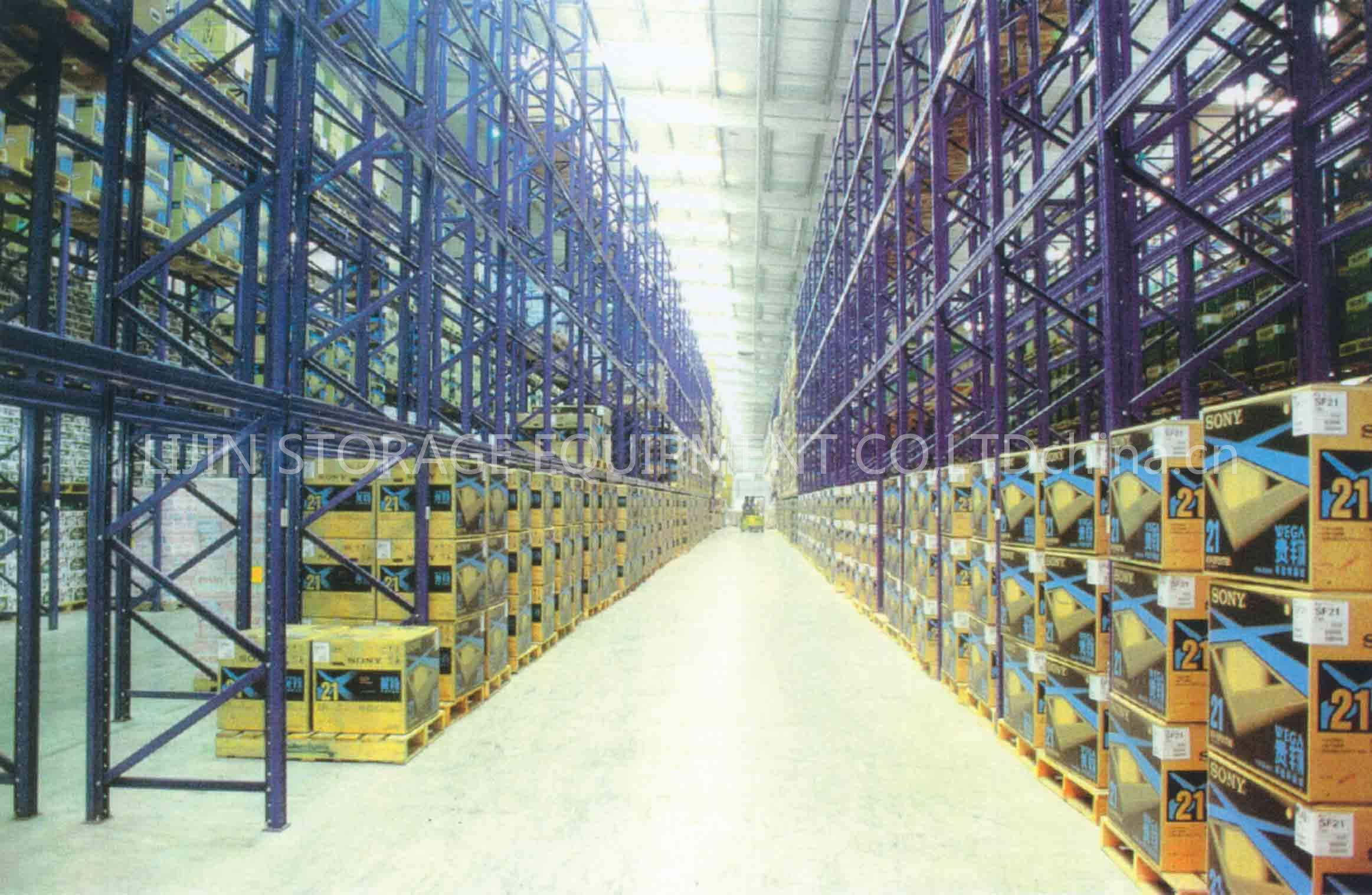

Dexion pallet rack

Selective Racking is the most economical storage system with the lowest equipment and capital costs. It provides direct access to all pallets for 100% accessibility and good stock rotation. Pallets can be located, accessed and moved individually, providing rapid handling of palletised goods. It provides easy beam adjustment and accommodates variable pallet heights. The bottom level pallets can be located on the floor for picking purposes. This lowers structure costs. Alternatively additional beams can be added for lower level picking. This system is infinitely adjustable and offers a wide range of options and components to accommodate specialized load types.

It’s usually consists of frames, beams, bracings and other standards components. H-bracing and D-bracing are connected to uprights by nylon self-lock bolts,can effectively prevent racking from losing balance caused by the release of the bolts; beam can be adjusted by 50,75 or 76.2 mm. Insert two safety pins to avoid beam be uplifted unexpectedly; the beams are connected to the uprights firmly.

System Configuration:
Main parts: Upright frame(consisting of 2 upright channels, 2 horicontal bracings, numbers of diagonalbracing, 2 welded footplates, box beam with two connectors and safety pin.
Additional parts: Pallet support bar, pallet stopper, steel wire mesh, steel shelf panel, wooden plywood, row-spacer between frame, wall tie between wall and frame, U-uprightor, L-uprightor, Column guard.

Use: Suitable for forklift picking ,most popular type of storage racking, widely used in all kinds of fields.
Material: Q235(high grade of cold rolled steel)
Surface treatment: Powder coating finishing.
Standard Color: Blue RAL 5015, Orange RAL 2004, Grey RAL7047, Yellow RAL1018.
Load Capacity: 300~500kg per level.
Loading capcity:800~4000kg/ level.
Standard specification:
Lenght:1200/1400/1900/2300/2500/2700/3900/3300/3900mm
Wideth:800/900/1000/1100/1200/1500/1800mm
Height:1500/2000/2500/3000/3500/4000/4500/5000/5500/6000/6500/7000mm.
