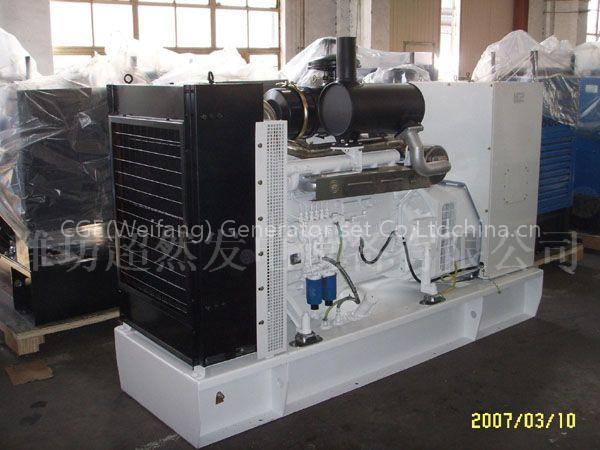

Deutz series diesel generating sets

Product Description
CGE-D series diesel generating sets, power coverage from 22KW to 120KW, adopt DEUTZ 226B series low power diesel engine made by Sino-Germany Joint-venture Company in China. German DEUTZ Engine Company is a world famous engine manufacturer, with the technical improving, 226B series have been used and tested thousands of times in various mechanical and marine fields. German DEUTZ Engine Company has transfered all the facilities, technologies, management system to Shandong Weifang Diesel Engine Company, which is a Sino-Germany Joint-Venture Company with a capacity of manufacturing 226B series engine over 25, 000 units per year.

CGE-D series diesel generating sets assembled by BAIFA POWER have the features as follows:
1. The holistic sets can be installed conveniently as your need (Absorbers, fuel tank in base, muffle and internal starting battery are fixed as standard)
2. With all characters of German Engine: Advanced technology, high reliability, long time service, low vibration, low noise (less than 85 db at 7 m ), small measurement and light weight.
3. The best price performance ratio, low running cost
4. Perfect control system is available to easy operation, comprehensive functions, reliable protection and so on.

Model	Frequency 50Hz		DEUTZ Diesel Engine
	Standby(KVA/KW)	Prime(KVA/KW)
CGE-D30	30/24	28/22	D226B-3D
CGE-D34	34/27	32/25	D226B-3D
CGE-D48	47/37.4	43/34	TD226B-3D
CGE-D70	69/55	63/50	TD226B-4D
CGE-D106	106/85	98/78	TD226B-6D
CGE-D142	142/114	130/104	TBD226B-6D
CGE-D165	165/132	150/120	TBD226B-6D5
Model	Frequency 60Hz		DEUTZ Diesel Engine
	Standby(KVA/KW)	Prime(KVA/KW)
CGE-D34-60	31/39	28/35	D226B-3D
CGE-D48-60	46/57.5	42/52.5	TD226B-3D
CGE-D70 -60	58/72.5	53/66	TD226B-4D
CGE-D106-60	88/110	80/100	TD226B-6D
CGE-D142-60	120/150	108/135	TBD226B-6D
CGE-D165-60	132/165	120/150	TBD226B-6D5
