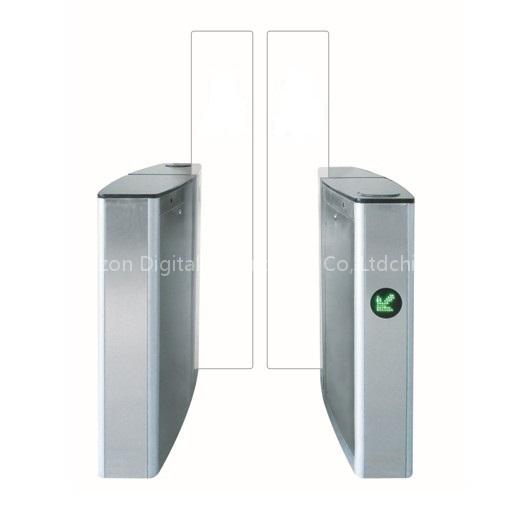

Deluxe Shift Gate

Using LINIX motor, stable, high fatigue strength can be 24 hours. n Mechanical movement with a unique structure, reasonable design, reliable, low noise, smooth operation, long service life. n Shift gate internal control panel stable, powerful, user-friendly design, with a unified, standard external electrical interface, read-write device with a variety of free mount, easy system integration. n gete open rate of about 0.3 seconds, the fastest in its class of devices, used to import and export of the subway shift gate speed requirements; it can effectively prevent the trailing, and improve traffic flow speed. n Power, the wings open automatically to form a transparent channel, meet fire needs. n Has a LED indicator on the validity of credit card. n The number of infrared sensors used to effectively monitor the status of pedestrian traffic, to prevent unauthorized access to pedestrian access, safety of pedestrians pass channel. n Anti-recoil, pedestrians from the opposite direction into the channel, wing gate immediately to the police. n Effective anti-trailing, to prevent a situation of too many people of non-permitted. n With automatic reset function, which is passed permissions, the set period of time did not pass, shift gates automatically cancel the rights, restore to the initial state. n Waterproof, sun, cold, heat. n Install a personalized interface, compatible with IC, ID cards and other smart cards. n Can be extended to automatic identification systems to achieve access control, attendance, fees and other functions.

TECHNICAL Case Material: Stainless Steel Box Size: 1600MM*300MM*1200MM Channel width: product diagram Arm wing material: stainless steel, acrylic Movement Voltage: DC24V Control signal: relay input Lighting Tip: green movement, red no-go LED Power Supply: DC12V ± 5% Passing speed: open mode: 50 peple/ min; closed mode: 30 peple / min Read the first installation position: 2 Panel mounting position: 2 Gate opening and closing time: 0.4 seconds Ambient temperature: -15℃ to 60℃ Relative Humidity: ≤ 90%, no condensation
