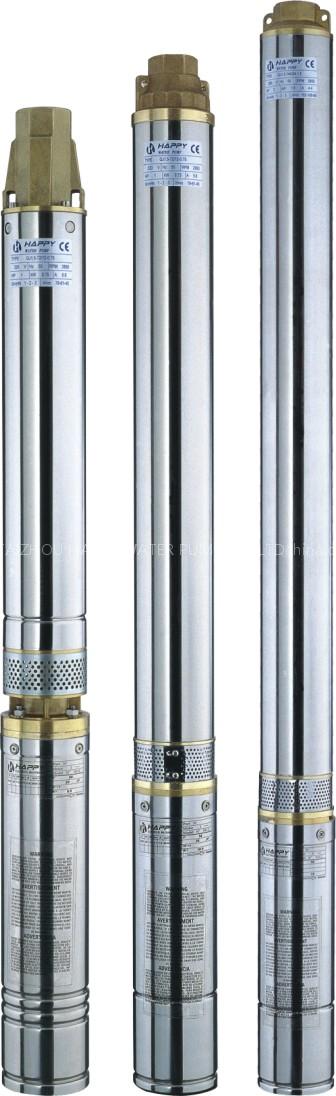

Deep Well Pump

Deep well water pump operating conditions:
* Water temperature up to 35°C
* Ambient temperature permissible up to 40°C
* Min. internal diameter of well: 102mm
* Max. immersion depth: 40m

Motor:
* Rewind able motor
* Insulation class: B
* Protection: IP68

Pump materials:
* Pump external casing: AISI 304 SS
* Delivery casing: AISI 304 SS/ cast-Cu ASTM280
* Suction lantern: AISI 304 SS/ cast-Cu ASTM280
* Stage casing: plastic, PC, PPO
* Impeller: AISI 304 SS / plastic POMPPO
* Shaft: AISI 316 SS
* Filter: AISI 316 SS / AISI 304 SS
* Wear ring: AISI 304 SS

Motor materials:
* Motor external casing: AISI 304 SS
* Former cover: cast-Cu-ASTM280/G20 UNI5007
* Bottom support: AISI 304 SS
* Mechanical seal: special seal for deep well (carbon-SIC/TC)
* Shaft: AISI 316 SS-C1045
* Bearing: NSK, NTN (Japan)
* Seal lubricant oil: oil for food machinery and pharmaceutical use

* Single phase 220 - 240V, 50Hz
* Three-phase 380 - 415V, 50Hz
* Single phase 110V / 220V, 60Hz
* Three-phase 220V / 440V, 60Hz
* Control box with capacitor as per requests
