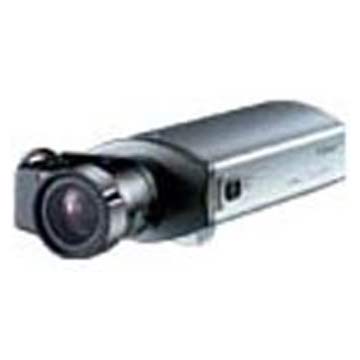

Day and Night Standard Camera is a Digital Cameras product. Key specs — Origin: China (Mainland).
Product Description
Features: 1) 1/3 Sony Super HAD or Exview HAD CCD 2) Day and night operation 3) High resolution and low Lux 4) More than 48dB S/N ratio 5) Back light compensation 6) Auto tracking white balance 7) Electronic shutter 8) DC and video drive auto iris 9) 12VDC or 24VAC with lens lock 10) Easy adjustment of back focus Specifications: 1) Pick up device: 1/3 Sony Exview HAD interline transfer CCD 2) Signal system: PAL or NTSC (color) 3) Picture elements: PAL: 752(H) x 582(V); NTSC: 768(H) x 494(V) 4) Horizontal resolution: 470TVL 5) Min illumination: 0.03LUX at F= 1.2 6) Scanning method: PAL: 625TVL; NTSC: 525TVL 2:1 interlace 7) Synchronization: internal sync; line lock, external sync 8) Infrared spectrum: 700 ~ 1,000mm 9) S/N Ratio: over 48dB (AGC off) 10) Auto gain control (AGC): 40dB on / 16dB off selectable 11) Electronic shutter: on / off (up to 1/100,000 sec) 12) White balance: auto tracking white balance (ATW) 2500º K to 9500º K N/A 13) Back light compensation (BLC): on / off selectable 14) Video output: 1 Vp-p, 75ohm composite, BNC x 1 15) Gamma ratio: 0.45 16) Auto-iris lens: video or DC drive, selectable 17) Lens mount: CS mount, with C mount adaptor 18) Power supply: 12VDC or 24VAC with line lock 19) Power consumption: 12VDC: max.
185mA; 24VAC: max. 250mA 20) Working temperature: -10ºC ~ +50ºC 21) Dimensions (L x W x H): 117 x 66 x 56mm 22) Net weight: 12VDC: 270g; 24VAC: 290g
