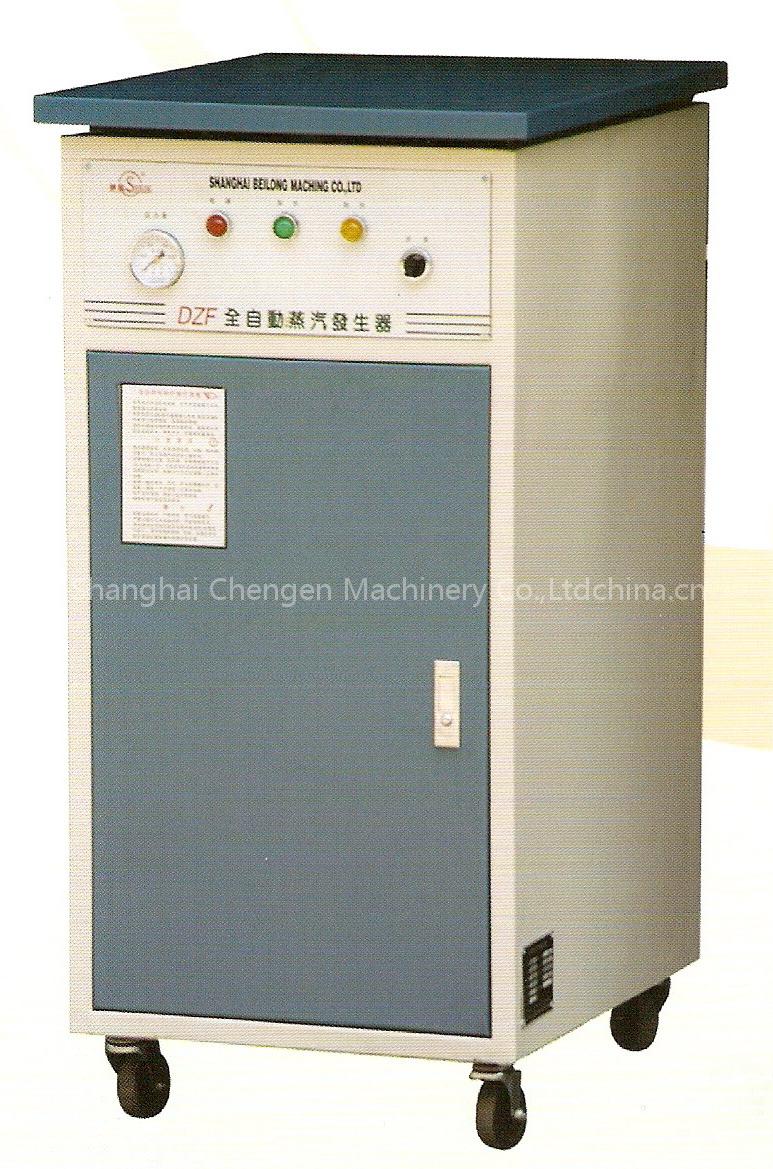

Name: DZF SERIES ELECTRIC HEATING STEAM GENERATOR
Brand: Chengen

Main Technical Parameter

Model	DZFZ-3	DZFZ-6	DZFZ-9	DZFZ-12	DZFZ-18
Voltage	220V	380V/220V	380V/220V	380V/220V	380V/220V
Motor Power （W）	ã€€	370W	370W	370W	370W
Electric Heat Power	3KW	6KW	9KW	12KW	18KW
Rated Steam Pressure	0.25Mpa-0.4Mpa	0.25Mpa-0.4Mpa	0.25Mpa-0.4Mpa	0.25Mpa-0.4Mpa	0.25Mpa-0.4Mpa
Overall Size（mm）	400×400×600	550×660×1000	550×660×1000	550×660×1000	550×660×1000
Capacity （Kg/h）	4.5kg/h	10kg/h	15kg/h	18kg/h	25kg/h
G.W/N.W（Kg）	ã€€	96kg	96kg	96kg	99kg

Advantages︰

FEATURE:
This series are designed and manufactured in conformity with "Regulations Regarding Safety Supervision on Small-Sized and Normal Pressure boilers". Their bodies are made of stainless steel. The water supplying pump is a turbine pump yielding high pressure and low noise. The water controller in the water tank can regulate the heating and water supplying. This series feature small size, high thermal efficiency, and easy installation and operation.
