DUCT MANUFACTURE AUTO-LINE 1

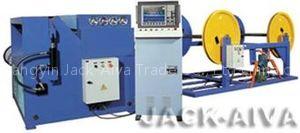

DUCT MANUFACTURE AUTO-LINE I consists of a feeding metal frame leveler-grooving roller, power cutting machine or hydraulic shearing machine. The operating system is computer controlled. The maximum working speed of the manufacture line is 10m/min. The length tolerance is ±0.5mm, diagonal line tolerance is ± 0.8mm, the feeding frame can be set as per customer's requirement.

De-coiler- material feed -leveler grooving roller-shear.

Technology data:

Sheet thickness:

Steel sheet: 0.5mm---2.0mm

Color sheet: 0.4mm---1.0mm

Sheet width (max.): 1265mm

Coiler ID: φ520mm

Coiler OD (MAX): φ1200

Capacity (max.): 5T

Length: adjustable

Length processing tolerance: ±0.5mm, diagonal tolerance: ±0.8mm

Flatting precision: ≤1.5mm/

Speed: ≤10m/min

Processing follow:

1. Uncoilingflatting, beading---punching side---bending---cutting (TDC machine)--completed products

2. Uncoilingflatting, beading---feeding---cutting length --- completed products

BASIC EQUIPMENT

A: one power metal feeding frame
B: leveler grooving roll & cutting machine
C: industrial computer and specific software
