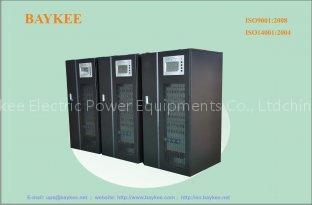

DSP Series Parallel Redundant UPS 10KVA-200KVA
Specifications
- Brand
- BAYKEE
- Origin
- Guangdong, China (Mainland)
- Price Term
- FOB
DSP Series Parallel Redundant UPS 10KVA-200KVA is a Solar Panels product. Key specs — Brand: BAYKEE; Origin: Guangdong, China (Mainland); Price Term: FOB.
Product Description
Certification:CE,CQC
UPS Power DSP 10-200KVA
1. Can be parallel max 8pcs charger
2. N+X Modular ups system
3. Internal audio alarm system DSP series 10K-200KVA:
1. Pure sine wave output, true on-line dual conversion design
2. Adopt 4 layer PCB, and SMD technology.
3. The sixth generation IGBT, the inverter has high efficiency, low temperature, high reliability.
4. Touch screen display, with the simple operation and Intuitive data, optional display language and logo.
5. Set the work mode on the display directly, UPS mode, ECO mode, EPS mode.
Intelligent detecting function
6. Excellent load feature, it is completely capable to load from 0-100% while no need to change to bypass
7. Three phase separately control, realizes the control of instantaneous over-loading balance, so as to reach 100% unbalanced load.
8. Cold start
9. Generator compatible
10. RS232 and RS485 standard collocation, optional SNMP and dry contact
11. Perfect protection.
12. Selectable battery inspection module
13. High-powered dynamic feature
14. Optional input harmonic filter
15.
Model | DSP10K | DSP20K | DSP30K | DSP40K | DSP60K | DSP80K | DSP100K | DSP200K | ||||
Nominal capacity KVA | 10KVA | 20KVA | 30KVA | 40KVA | 60KVA | 80KVA | 100KVA | 200KVA | ||||
Work mode | parallel max 8pcs the same model | |||||||||||
Phase | 3phase+N+G | |||||||||||
Input power factor | >0.9 or >0.95(optiom) | |||||||||||
Rectifier | Nominal input voltage | 220/380VAC ;230/400VAC ; 240/415VAC | ||||||||||
Range | 25% | |||||||||||
Nominal input frequency | 50Hz10% ; 60Hz10% | |||||||||||
Output ripple | Less than 2% | |||||||||||
Soft start | 0-100% 5sec | |||||||||||
Charge | Charge mode | constant current to constant voltage, with temp compensation; with Auto change | ||||||||||
Float Voltage | 432VDC | |||||||||||
Boost Voltage | 445VDC | |||||||||||
Temperature compensation voltage | 3mV/ 1 pcs | |||||||||||
Charge current | 0.1C（ automatically change follow the batteries ） | |||||||||||
Charge frequency | 20% of Rated capacity | |||||||||||
Battery | Battery Type | maintenance-free lead acid battery | ||||||||||
Battery capacity | 7--999AH settable (according to the capacity) | |||||||||||
Battery number | 32pcs 12V or 192pcs 2V（Nominal voltage 384VDC） | |||||||||||
