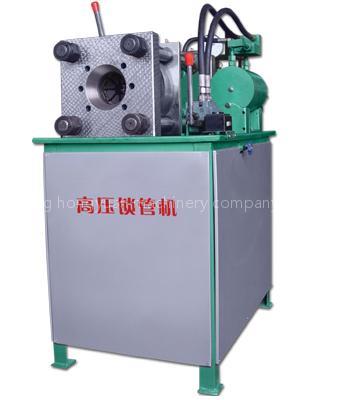

DSG-75 Multi-functional hose crimping machine
Listing ID#10061752
ModelDSG-75
CategoryOther Farm Machines
Other Farm Machines

DSG-75 Multi-functional hose crimping machine

Specifications

Origin
cn
Price Term
FOB
Request Quote
Quick answer

DSG-75 Multi-functional hose crimping machine is a Other Farm Machines product. Key specs — Origin: cn; Price Term: FOB.

Product Description

1. The usage

The machine is an enhanced type of a high pressure locking tube machine in model 75, which is the special equipment for pressing the tube end of a high pressure rubber tube with a outer cover and a core together for the production or repair a hydraulic support.

2. The composition and the main technical characters

The machine is composed of a locking & pressing mechanism, a motor, a gear pump, a control valve and an oil tank.

Maximum inside diameter of attaching

Rubber tube:76mm

Maximum length of attaching bent:320mm

VOLTAGE:380v

Power:7.5kw

Dimension:lengthxwidthxheight:1570x740x1400mm
