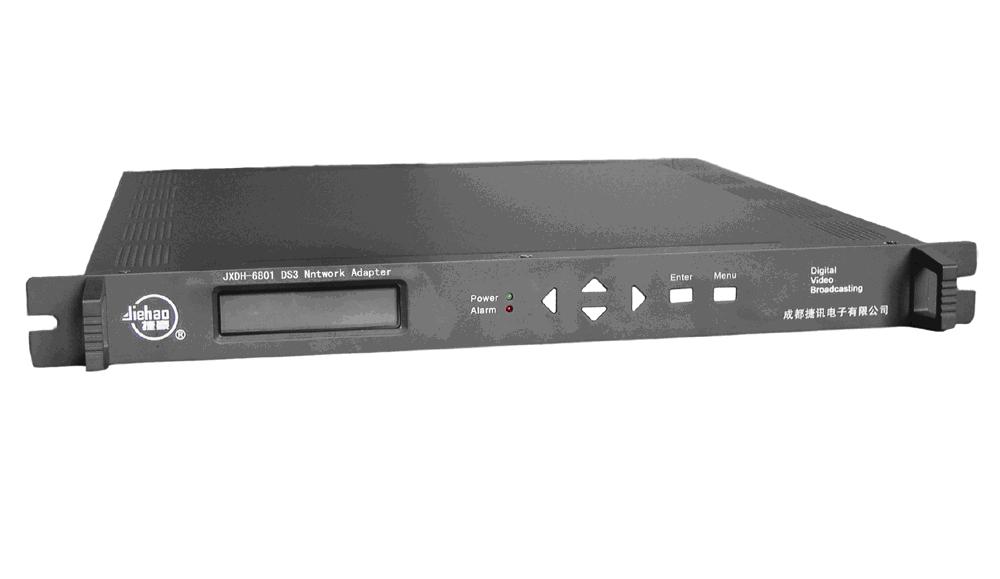

JXDH-6801 DS3 Network Adapter

Outline: JXDH-6801 DS3 network adapter is a interface equipment for DVB and SDH front-end. While program transmitting, it can be used as DS3 transmitter, converting MPEG-2 TS stream into Ds3 data stream for transmission. Similarly, when receiving program, it can be used as DS3 receiver, restoring DS3 data stream coming from transmission equipment into MPEG-2 TS stream.

Features:

* Smoothing PCR jitter * Transparent transmission without ATM adapting process ,directly mapping Ds3 frame * Providing operating precautions alarm * Input/output TS is MPEG-2 transmission stream * DS3 stream frame structure complies ITU-TG.752,ITU-T G.804; * DS3 signal physical interface complies ITU-TG.703; * Transmitting output DS3:44.736Mbit/s; * Receiving input DS3:44.736Mbit/s. *

Specification:

* Input Interface Number: DVB ASI:1 , DS3:1 * Input Interface: DVB ASI; DS3 * Output Interface Number: DVB ASI: 3, DS3:1 * Output Interface: DVB ASI;DS3 * Interface Specification: ASI ,DVB Standard * Dimension: 44mm×482mm×433mm * Temperature: 0 ~ 45℃ (Operating); -20 ~ 80℃(Storage) * Power: 220VAC±10%,50Hz,25W
