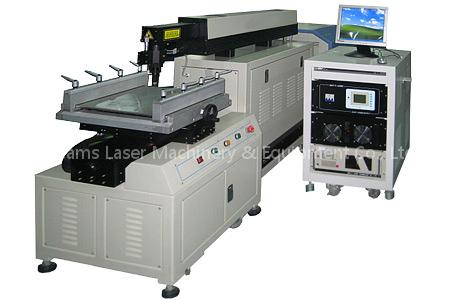

DR-QG 300 Laser Cutting Machine

DR-QG300 laser cutting machine is used for cutting and punchingof sheet metal, steel, copper, aluminum, etc.. DR-QG300 use thedual-lamp laser ceramic cavity imported from British , it has higher output power, using the German ball screw, with the characters ofhigh cutting speed, high precision and good surface cutted is smooth . In addition, the straight line / curve cutting path can be set is suitable for the cutting of stainless steel, carbon steel, aluminum, copper and other metal sheet material, the laser machine is the pulse xenon lamp-pumped laser infrared (1064nm) laser machine.

● friendly interface

● stable beam quality

● Automatic cooling system

●

● All operation is controlled by software, and it is easy to learn

Specifications

Laser wavelength 1064 nm

Pump light pulse xenon lamp (Lamps)

Cavity ceramic cavity

Collimated light red laser

Discharge current 100-400 A

Discharge pulse width 0.1-10 ms

Maximum cutting depth depends on the material, such as carbon steel 2.50mm, stainless steel 1.88mm

Cutting width 0.25-1 mm, depending on materials and auxiliary gas

Cutting area, according to the different needs of custom

Input voltage three-phase four-wire, AC 380V ± 10%, 50 Hz/60 Hz, with a protected ground (such as voltage fluctuation is too large to be equipped with voltage regulator)

Maximum input power 15 kW

Master device size 1300 mm x 1150 mm x 550 mm

Cooling unit 1500 mm x 1200 mm x 570 mm

Weight is about 580 kg

Cooling Water

For the use of sheet metal cutting and drilling, such as steel, copper, aluminum, etc.
