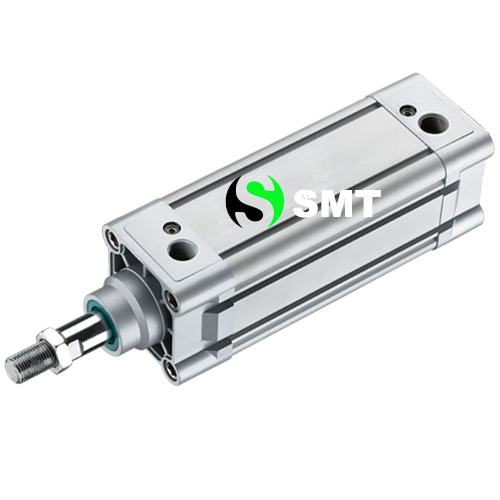

DNC air cylinder is a Other Farm Machines product. Key specs — Origin: China; Price Term: FOB.
Product Description
DNC Series pneumatic cylinders are manufactured according to, VDMA24562 standard and DIN24335 standard. And this cylinder is the same as FESTO DNC series. We have normal bore size from 32mm to 150mm, stroke from 0 to 1000mm The cylinder end covers and piston have been machined by CNC, and important seals are from overseas, to guarantee the pneumatic cylinder work stably and with long life
Features of DNC pneumatic cylinder (air cylinder) :
*DNC series are the same as FESTO DNC cylinders appearance, with slot on the cylinder barrel and end covers for magnet sensor mounting more conveniently.
*Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly, safety and with low noise.
*With self-lubricating bearing, the piston rod is lubrication free.
*Magnet and sufficient Fixing styles are available.
| Cylinder Diameter(mm) | 32 | 40 | 50 | 63 | 80 | 100 |
| Acting Mode | Doubic Acting | |||||
| Working Medium | Air | |||||
| Fixting type | Basic type | |||||
| Rod end fitting type | Basic type TY TI TF TB | |||||
| Working pressure(MPa) | 0.1~0.9 | |||||
| MAX.Pressure(MPa) | 1.35 | |||||
| Working temperature(℃) | -5~70 | |||||
| Speed range(mm's) | 50~800 | |||||
| Cushion type | Adjustable Cushion | |||||
| Cushion stroke(mm) | 24 | 32 | ||||
| Joint Size(mm) | G 1/8 | G 1/4 | G 3/8 | G 1/2 | ||
| ** Bore≥125mm,the dimension is the same as ISO6431 | ||||||
