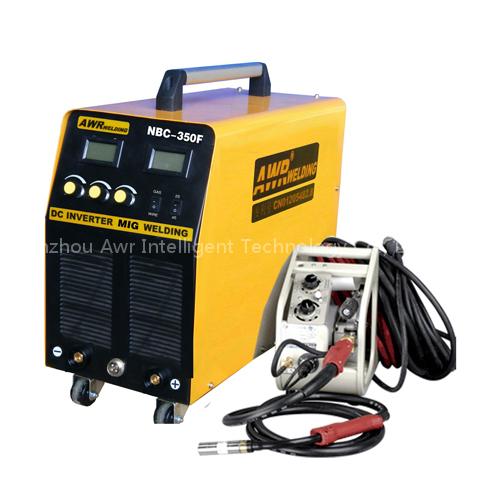

DC inverter MIG/MAG welder
Specifications
- Brand
- AWR
- Origin
- China
DC inverter MIG/MAG welder is a Industrial Power Supplies product. Key specs — Brand: AWR; Origin: China.
Product Description
1.Adopted imported Mosfet modular, PWM control manner, constant current, perfect performance, accurate control of current.
2.Automatic protection of over heat, over current, under voltage, LCD display current meter.
3.Little power consumption in no-load state, energy saving.
4.HF arc starting, speedy dynamic response, more stable arc, deep welding pool.
5.Suitable for all black metals such as low carbon steel, mild carbon steel, and alloy steel structure.
Typical specification
Type | NBC-270F | NBC-350F |
Input voltage (V) | Three phase AC 220~380 ±20% | Three phase AC 380 ±20% |
Frequency (Hz) | 50/60 | 50/60 |
Input current(A) | 12.6 | 19.1 |
Input capacity (kVA) | 8.3 | 9.6 |
Output current (A) | 50-270 | 50-350 |
Output voltage (A) | 16.5-26.5 | 16.5-26.5 |
Duty cycle (%) | 60 | 60 |
Power factor | 0.93 | 0.93 |
Efficiency | 85 | 85 |
Insulation grade | F | F |
Type of wire feeder | Outside | Outside |
Dimension (mm) | 550×260×440　　　 | 　550×260×440　　　 |
Rank of protection | IP21 | IP21 |
Feeding speed (m/min) | 2.7-11 | 2.7-11 |
Post-flow time (S) | 1±0.5 | 1±0.5 |
Wire cylinder diameter (mm) | 270 | 270 |
Weight (kg) | 18 | 21 |
Diameter of earth cable (mm) | 2.5 | 2.5 |
