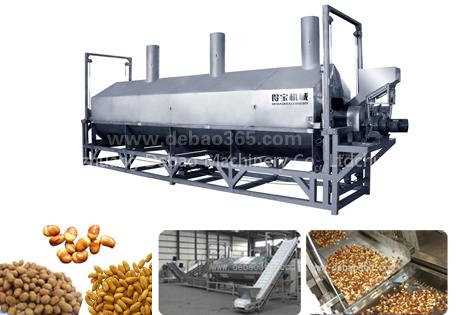

DBG continuous fryer

Equipment introduction:This machine is rolling-tube system frying it is also the p . This machine is specially developed for peanuts and nuts .

Equipment introduction
Rolling-tube system,the pulses can rotate automatically.The strudure of rolling-tube is roundness, so the oil capacity is just one third of the tradition equipment. It has insulating course make for save the power. The frying time can be asjustment by frequency conversion control transmission components. In order to washing,protect and maintain the machine, the frying rolling-tube can be rise up out of the fryer. It can be topping up of oil at any time when the frying oil is less. There alsi has the automatically filter system in order to filter the dreg at any time. Specialty heating system, you can choose the heating system according to energy.Coal,electricity,gas,LPG. The whole machine is made bu stainless steel which is accordance with sanitary requirement.



Technical data :	DBG400	DBG650
size	5300×1400×2800mm	6500×1550×1950mm
frying area	3500×800mm	5400×650×60mm
oil capacity	500L	900L
weight	1500KG	1100KG
electrical power	3KW	3.2KW
power	400KW	200KW
voltage	380V	380V
frequency	50HZ	50HZ
temperature	≤260℃	≤260℃
coal consumption	100-125KG/H	Heat transfer oil boiler
