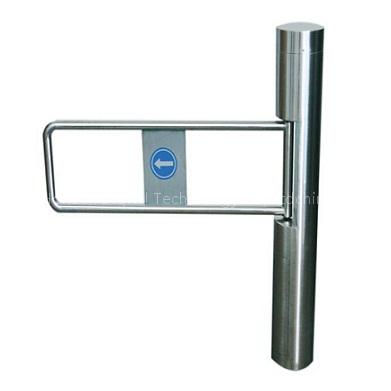

Cylinder swing gate

1. Movement designed, reliable, low noise, smooth running, long service life. 2. Arm opening speed can be set to meet the requirements of different occasions. 3. Power, the arm open to form a transparent channel. 4. LED light with direction prompts. 5.

The number of infrared sensors used to prevent unauthorized access to pedestrian access, safety of pedestrians pass channel. 6. Anti-recoil, pedestrians from the opposite direction into the channel, immediately to the police. 7. Anti-trailing, to prevent a situation of too many people of non-permitted. 8.

With automatic reset function, which is passed permissions, the set period of time did not pass, swing gate automatically cancel the rights, restore to the initial state. 9. Waterproof, sun, cold, heat. 10. With personalized installation interface, compatible with IC, ID cards and other smart cards. 11.

With a uniform, standard external electrical interface, read-write device with a variety of free mount, easy system integration. 12. Can be extended to automatic identification systems to achieve access control, attendance, fees and other functions. 13. With other types of channels with the use of the product. TECHNICAL

Case Material: Stainless Steel Internal Structure: Steel frame structure Box Size: Product Diagram Channel width: the product diagram Arm wing material: stainless steel, acrylic Movement Voltage: DC24V Control signal: relay input Lighting Tip: green movement, red no-go LED Power Supply: DC12V ± 5% Passing speed: open mode: 50 times / min; closed mode: 30 times / min Read the first installation position: 2 Panel mounting position: 2 Gate opening and closing time: You can set Ambient temperature: -15 ℃ to 60 ℃ Relative Humidity: ≤ 90%, no condensation
