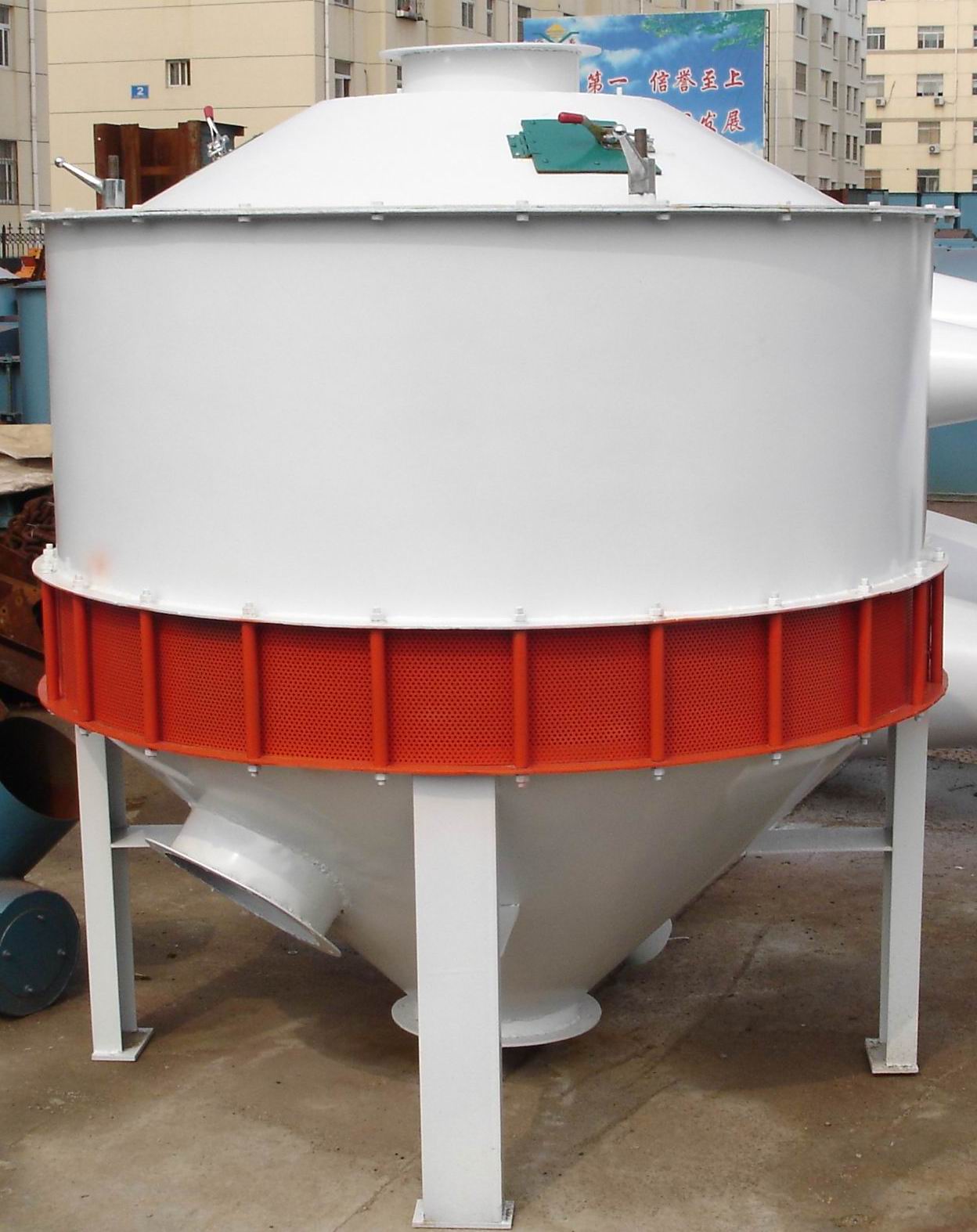

Cyclone

The cyclone, relying on inertia from the centrifugal pull of revolving air, is a simple and effective deduster. With low price, simple structure, compact design, manufacturing ease, management and maintenance convenience, no moving parts, Cyclone is widely used in grain, food, metallurgy, mining, cement, petrochemical and other industries. â… .

Structure and Operating Process of cyclone There are three kinds of cyclone in our company: Spin under-60 series, under-55 series and Germany spin-efficient cyclone. Cyclone is made up of inner and outer the two cylinders cone and vents. The two cylinders and the dust exit are at the same axes.

Dust-laden air with high speed enters the upper part of the outer cylinder by the tangential line, and then makes top-down high-speed spiral movement between the two cylinders and the cone. Under the centrifugal pull the dust is thrown onto the wall of outside cylinder.

With the collision and friction the dust gradually loses speed, and then under the gravity falls along the wall of the cone and finally is discharged from the dust exit. The top-down rotary air: some is discharged from the inside cylinder gradually in the midway.

And the left runs and shrinks along the cone and then goes up to the body center spirally and then is also discharged from the inside cylinder. â…¡. Performance & Character and Application Scope The dedust efficiency can be 95-99% when dealing with 40-50 micron dust. And with 10-15 micron dust the spin-efficient cyclone can achieve the same efficiency.

But in practical operations, most of cyclone rings from 50% to 90%. Application Scope: 1) Gather big dust 2) Lower dedust efficiency occasions 3) high dust-load air 4) Be series used with other deduster which has high efficiency to the small dust, such as pulse deduster. 1.

Shunt-wound operation The small diameter cyclone has higher duster efficiency and its dust exits can share one dust hopper. So in order to meet the large volume of air dealing, cyclone is always shunt-wound operation. 2.

Series-wound operation Experiments show that under normal circumstances two series-wound cyclone has lower in certain circumstances we can consider series-wound operation. (1) Fragile materials: the airflow speed cannot be too high in the dust-collection device. (2) Accident prevention by series-wounded operation.

The deduster efficiency generally improves with the dust concentration. So in order to improve high dust load air dedust efficiency cyclone is always used as the first grade deduster. And the second grade deduster always adopts pulse deduster r or wet deduster, which has high efficiency dealing with lower concentration dust.

What’s more, cyclone can prevent the massive or flammable, explosive materials entering the second grade deduster. â…¢. Main Technical Specifications The wind speed at the entrance and the cylinder diameter are the main factors to affect the deduster efficiency and the key to choose the suitable models choice.
