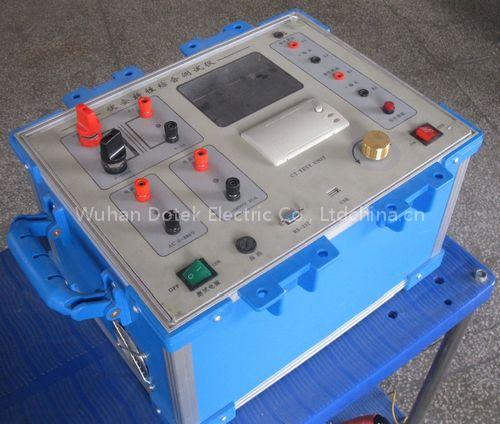

Current Transformer Test Set
Specifications
- Brand
- Dotek
- Origin
- China (Mainland)
Current Transformer Test Set is a Auto Meter product. Key specs — Brand: Dotek; Origin: China (Mainland).
Product Description
DescriptionDTCT-2009 is an intelligent, full-function test set for current transformer.
It is capable to test V-A characteristic curve, 5% & 10% error curve, turn ratio, polarity, ratio error and phase difference, and apply current to primary winding, and demagnetize secondary side.The test set uses the latest SOPC technology and high-accuracy data- converter, the output voltage and current are program-controlled, and the testing process is fully automatic.Using external voltage or current regulator, the test set can be applied to more CTs.Using RS-232 port, the User can test current transformer by upper PC.
Features Full function, almost perform all test on all CT. Large LCD screen, Rotary mouse, Menu operation. Fully automatic testing: Auto regulate output from zero, Auto record data, Auto plot curve. High safety and reliability: Operator no longer contact the test set, once start automatic testing. Built-in Permanent calendar Real-Time-Clock.
Built-in Mass storage to save 45~2000 groups of test data. Built-in Printer to print test data and curves. USB port to transmit test data to U-disk as WinWord file (.doc). RS-232 port to upper PC, facilitate testing CT on PC.
