Cup Machines

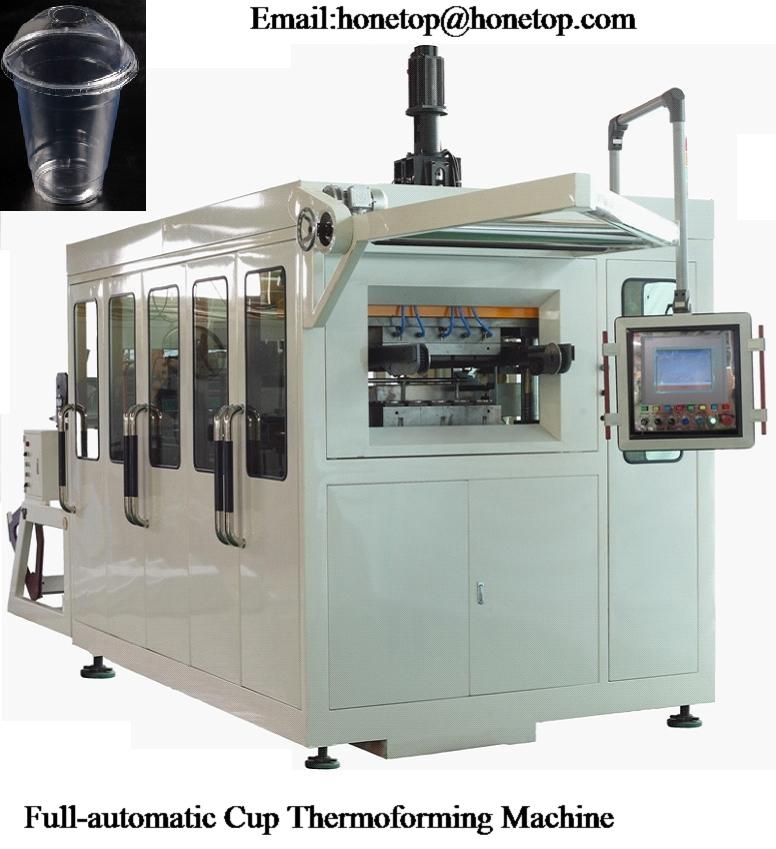

High Quality Plastic Cup Thermoforming Machine HT-650A

Application area: The machine produces disposable plastic cups, plastic bowls, ice cream cups, cold drinking cups, yoghurt cups, coffee cups, jelly cups, plastic dishes, plastic trays, plastic lids, food containers, plastic boxes, vessel for fast-food etc.

Technical Parameter: Model No:HT-650A Forming Area (mm): L650mm x W320mm Forming Depth(Max):130mm Suitable Material:PP, PS, PET, HIPS, PVC Sheet thickness:0.3mm-2mm Forming Speed(cycles/min): MAX: 35shots/min Rated Power:80kw Actual Power:55kw Compressed Air:0.7-0.75mpa/1.6M3/min Water consumption:Cycle Overall Dimension(mm): About L6000XW2000XH2700 Weight: About 4.5T Functions: 1.

PLC: Siemens,Germany. 2. Touch Screen: Siemens,Germany. 3. 4 pillars (column) model. 4. Servo motor control sheet feeding, Yaskawa brand, Japan. 5. Servo motor control upper mold, Yaskawa brand, Japan. 6. Automatically lubricate the movement parts of thermoforming machine. 7. Oven system automatically move out when the power is off.

9.Hydraulic pressure system drives thermoforming mechanism. 10. Automatic load for sheet roll. 11. PID temperature control.
