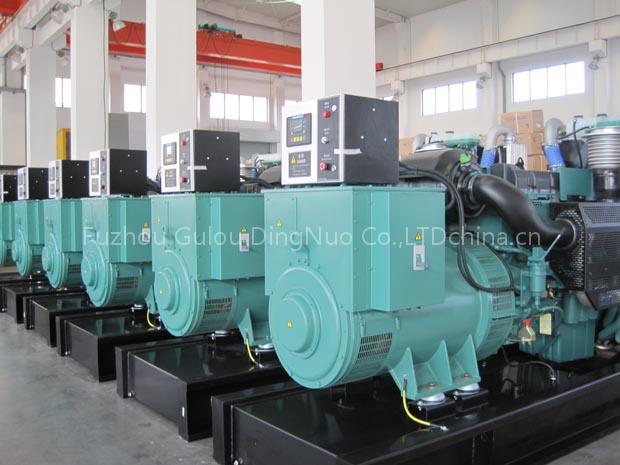

Cummins power generator

1.Output range: 16kw (20kva)-800kw(1000kva)

2.Cummins Engine models:NTA855-G1,NTA855-G1A,NTA11-G3,NTA855-G2A…

3.Alternator model: Leroy Somer / Stamford / Marathon / ENGGA … (Excitation: Brush less)

4.Water-cooled

5. 8 hours operation base fuel tank

6. 230 / 400V AC, 50HZ / 60HZ, 0.8pF three-phase and four wires

7.Insulation class: H

8.Protection: IP23

9.Control panel consisting of:

Emergency Stop button

Voltmeter and selector switch

Ammeter and selector switch

Frequency meter

Controller with selection for auto-start, manual-start and Automatic alarm system with following (and not restricted to) features:

1).Start / Stop button

2).Hour run meter

3).Monitor engine temperature and provides shutdown protection

4).Monitor engine speed and provides optional shutdown protection

5).Monitor oil pressure or level and provides shutdown protection

6).Alarm output for abnormal operation

10.Sound-proof / weather-proof canopy is available

11.Detailed specification will provide upon requested

Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80 dB / 7m<70 dB

Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop

Optional:

1. Trailer type

2. Soundproof / water proof

3. ATS (automatic transfer switch)

4. Parallel system

5. Remote system

PMC System:

1. Standard 2\3 pitch windings avoid excessive neutral current

2. Permanent magnet generator system provides constant excitation under all condition

3. Optional accessories available for easy paralleling with mains or other generators

4. AVR auto voltage regulation, auto exciter, auto adjustment

Our Advantages:

1. Solve your technical problems in 24 hours and provide international warranty service for engines

2. Design the appearance form according to customers’ request

3. Polyester varnish for appearance protecting for shining and raining

4. Two hours testing before out factory

5. ISO9001 and CE certification
