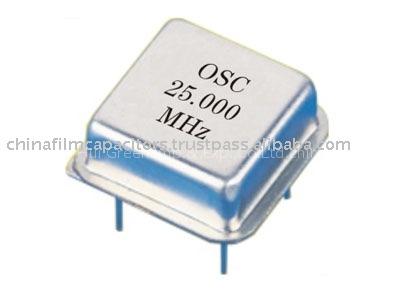

Crystal Clock Oscillators DIP8/DIP14

More Keywords Crystal Clock Oscillators DIP14,Crystal Clock

Product Details Place of Origin Anhui, China (Mainland)
Brand Name GREEN

Group Quartz Crystal(Resonators)
Listing Description Quartz Crystal.Crystal Clock Oscillators DIP8,Crystal Clock OscillatorsDIP14
Detailed Description Crystal Resonators HC-49U,UM-1/UM-5,Crystal Resonators HC-49US/SMD,Crystal Resonators HC-49US,Quartz Crystal Resonators 3225,4025,5032,6035,7050,SMD.Quart Crystal oscillators Crystal Clock Oscillators DIP8,DIP14.Columniform Crystal Resonator.Tuning Fork Resonators

Feature:
High frequency, High reliability, Tri-state function;TTL, CMOS output
Suitable as a standard clock for office automation equipment

General Specification:
Model DIP8/14
Frequency range 1~125MHz
Frequency stability ±20ppm~±100ppm
Operating temp range 0~±70
Storage temp range -55~±125
Output load 1~10TTL or CMOS 15~50pf
Input current 10mA max 1~4MHz
30mA max 4~32MHz
45mA max 32~80MHz
60mA max 80~125MHz
Input voltage 3.0vdc±0.3v,+5.0vdc±0.5
Symmetry 45%~55%,40%~60%
Rise/fall time 5ns typioal,10ns max

"0" Level TTL | CMOS
0.4v max | 10%vdd max
"1" Level 2.4v min | 90%vdd min
Special specifications are available as customer

FOB Price USD 0.03~0.66
Port SHANGHAI
Payment Terms T/T Western Union MoneyGram
Min. Order Quantity 1000 Piece/Pieces
Production Capacity 10,000,000 Piece/Pieces / Month
Delivery Time 20days
