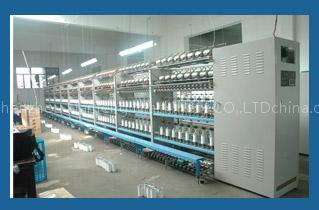

Covering yarn machine

1.Use: Used for the production of covered yarn with spandex as the core yarn and terylene and terylene and Nylon as the covering yarn. And it can also be used for the single and double covering with metallic yarn covering. 2.techinecal specifications Type Two sides and one layer

Size(mm)L*W*H 16500*1400*2100

Total powerKW 13

Spindle number 192/golden and silk thread 256

Mechanical spindle speed(r/min) 9000-15000

Range of covering twist number(T/M) 200-3000

Twist direction S or Z

Covering fiber bobbin size Ā84*Ā36*140

Range of max.stretching times 1.6-4.5

Capacity of covering fiber 750

Take-up forming mode Mechanically forming

Size of take-up Ā68*Ā76*220

3.Finished product
