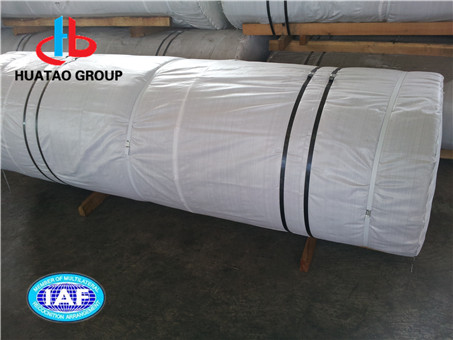

Corrugated Paper Belt

The weaving belts of single weft and multi-layer warps are widely used in the corrugated board production lines

Our produce are

High-speed Corrugator Belt with low noise WSD-9Gsuitable for average linear speed 200m/min

Mid-speedCorrugatorBeltWSD-10Z suitable for average linear speed 130m/min

High-speed Corrugator Belt with Kevlar(low noise) WSD-95Gapplocable to the corrugatingequipment which cardboard width is changed often

Traction Belt / Stack Belt QYD-WDD Belt width:(300-2000)mm

PneumaticCoveringBelt (200-3000) mm

Manufacture various kinds of industrial belts according to customer's requirements.

Products Features Tensile strength: Warp direction (63-70) Mpa. in dry mode

Heat resistance: Raw materials are polyester synthetic fiber, softening point≥260℃

Moisture adsorption: Quick absorption and emission of heat, therefore cardboard can be quickly dried

Air-permeability: Up to 2.08m3/m2 min, under 40mm water column pressure, through CCEP test

Seams: Belt seam part is fabricated with imported steel fasteners and filled with rubber,flat surface, heat-resistance, fastness and non-marking

Suitbalility: Suitable for all types of corrugators, various cardboards and some partcular operation mode

Geometrical dimension: Steady belt dimension, high weaving density, low stretching and contraction and good contact between belt surface and cardboard

Service life: As long as the same products imported abroad.

Rubber Seam Feature: Belt seam part is fabricated with imported steel fasteners and filled with rubber

Resists tearing, non-abscission

Resists abrasion Resists heating: top up to 230℃

Flat surface. Neither damage flat press device nor damage outer rubber of driving-roller

Smooth surface, non-marking, in favor of printing

Stabilizes transmission, prevents heavy roller from jolting

For a longer service life

Ready-made for preprinting

Suitable for various kinds of heavy-roller corrugators, especially for the new-type

Corrugators with flat press device.

Main Usage

·The Solid Woven Polyester/Cotton Belt is one main special part of corrugated machine automatic

production line. Its main function is to ensure that the board transportation and the rapid evaporation of the water inboard.

* We can product as customers special request.
