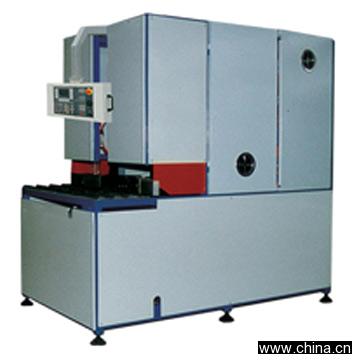

Corner Cleaning Machine CNC

Model No.:SQJF-CNC-120 Product Origin:China Brand Name:TC-JIAHE Price Terms:EXW, FOB, CIF Payment Terms:T/T, irrevocable L/C at sight Certification: Description:Features: 1) Used for cleaning all types welding seams2) Good performance, simply operating and high reliability for adopting imported computer system3) Seven cutters setting in machine almost has the function of fluctuating, adjustment and quick replacing, etc.4) This machine is installed in side way to make maintenance simple and convenient.5) A special cutter for inner slants of different profiles can realize inner slant cleaning but needs no any adjustment6) Automatic diagnoses of computer can prevent accident7) EMS memory of computer can store many programs for different profiles' processing8) Operating interface is very convenient for user9) Main parts have the function of good performance and long-term usage, including motor, imported servo-drive system, computer control system, electromagnetic valve, etc.

10) This machine is used for production line together with welding machine through conveyer and manipulatorParameters: Input voltage: 3N - 50Hz, 380/220VInput power: 9.5kWAir pressure: 0.5 - 0.8MPaAir consumption: 150L/minProfile height: 30 - 120mmProfile width: 20 - 120mmOverall dimensions: 2,160 x 1,300 x 21,00mmWeight: 1,200kg
