Copper rod continuous extrusion machine
Listing ID#10214320
CategoryMetal & Metallurgy Machinery

Copper rod continuous extrusion machine

Specifications

Brand
1997
Origin
China (Mainland)
Price Term
FOB
Request Quote
Quick answer

Copper rod continuous extrusion machine is a Metal & Metallurgy Machinery product. Key specs — Brand: 1997; Origin: China (Mainland); Price Term: FOB.

Product Description

Copper rod continuous extrusion machine
1.Max. product width (mm):14; 30; 65; 170
2.Feedstock diameter (mm):8; 12.5; 16; 20
3.Motor power (KW):45;90;160;250

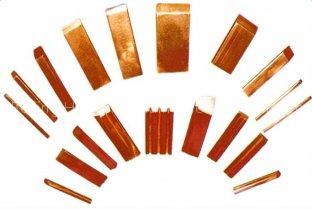

Production of continuous extrusion machine: copper flat strip, copper busbar, commutator connect, trolley contact wire, and other solid copper conducter

Specifications of continuous extrusion machine

Model

TLJ250

TLJ300

TLJ350

TLJ400

Wheel diameter (mm)

250

300

350

400

Motor power (KW)

45

90

160

250

Feedstock material

Copper

Copper and copper alloy

Feedstock diameter (mm)

8.0

12.5

16.0

20.0

Max. product width (mm)

14

30

65

170

Product section area (Square mm)

5-50

10-150

30-450

100-2000

Output rate (Kg/h)

140

400

760

1400

Scrap rate (%)

1-3

1-3

1-3

3-6
