Listing ID#10216853
ModelYX08-01
CategoryPipe Fittings
Quick answer

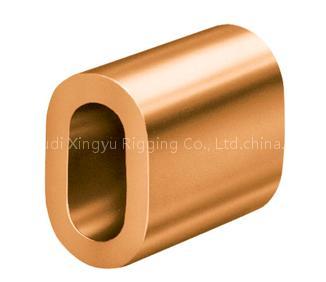

Copper Ferrules is a Pipe Fittings product. Key specs — Brand: 星宇; Origin: China; Price Term: FOB.
Product Description
AISI304/316/Copper Ferrule
German Standard
| Art No. | Size | Ins. Width | Out Length | Thickness | Length |
| 　 | (mm) | (mm) | (mm) | (mm) | (mm) |
| YX08-0101 | 1 | 1.3 | 2.6 | 0.85 | 5 |
| YX08-0102 | 1.5 | 1.8 | 3.6 | 1.05 | 6 |
| YX08-0103 | 2 | 2.4 | 4.8 | 0.85 | 7 |
| YX08-0104 | 2.5 | 2.7 | 5.4 | 1.1 | 9 |
| YX08-0105 | 3 | 3.3 | 6.6 | 1.35 | 11 |
| YX08-0106 | 3.5 | 3.9 | 7.8 | 1.6 | 13 |
| YX08-0107 | 4 | 4.3 | 8.8 | 1.7 | 14 |
| YX08-0108 | 4.5 | 5.1 | 10.2 | 1.9 | 16 |
| YX08-0109 | 5 | 5.6 | 11.2 | 2.1 | 18 |
| YX08-0110 | 6 | 6.7 | 13.4 | 2.5 | 21 |
| YX08-0111 | 6.5 | 6.9 | 14 | 2.7 | 23 |
| YX08-0112 | 7 | 7.5 | 15 | 3 | 25 |
| YX08-0113 | 8 | 8.5 | 17 | 3.5 | 28 |
| YX08-0114 | 9 | 9.9 | 19.8 | 3.7 | 32 |
| YX08-0115 | 10 | 10.9 | 21.8 | 4.1 | 35 |
| YX08-0116 | 11 | 11.6 | 23.2 | 4.2 | 39 |
| YX08-0117 | 12 | 13.2 | 26.4 | 4.9 | 42 |
| YX08-0118 | 13 | 14.2 | 28.4 | 5.4 | 46 |
| YX08-0119 | 14 | 15.3 | 30.6 | 5.8 | 48 |
| YX08-0120 | 16 | 17.5 | 35 | 6.7 | 56 |
| YX08-0121 | 18 | 19 | 38 | 7.8 | 63 |
