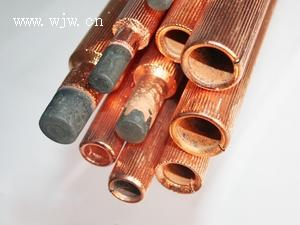

Copper Coated Gouging Carbon Electrodes

DC Copper Coated Jointed Gouging Rods

Designed for Automatic Gouging Torches. Has Male and Female Parts and can be used continuously without stub loss.

Model Dia×Length Current Range(A) General applications

mm Inches

B508J 8×355 5/16×14´ 500-550 Ideal for either automatic or manual torch applications.Continuous electrode feed excellent quality and eliminates stub loss.

B509J 9×355 23/64×14´ 550-600

B510J 10×355(430) 3/8×14´(17´) 600-650

B511J 11×355(430) 7/16×14´(17´) 650-700

B512J 12×355(430) 15/32×14´(17´) 700-800

B513J 13×430(510) 1/2×17´(20) 800-1000

B516J 16×430(510) 5/8×17´(20) 1000-1200

B519J 19×430(510) 3/4×17´(20) 1200-1400

Dc Copper Coated Flat Gouging Rods

Designed for metal removing , Excellent for removing welding crowns,repairing or making dies,removing old welds and scarfing billets.

Model Long×W×Thick Current Range(A) General applications

mm Inches

B5412 4×12×355 5/32×15/32×14´ 200-250 Excellent for cutting removing,weld and Castings Crowns. Repairing of making dies.

B5510 5×10×355 3/16×3/18×14´ 250-300

B5512 5×12×355 3/16×15/32×14´ 300-350

B5515 5×15×305(355) 3/16×19/32×12´(14) 350-400

B5518 5×18×355 3/16×45/64×14´ 400-450

B5520 5×20×355 3/16×25/32×14´ 450-500

B5525 5×25×355 3/16×63/64×14´ 500-550

B5620 6×20×355 15/64×25/32×14´ 550-600

DC Copper Coated Pointed Gouging Rods

A Standard Gouging Electrodes with lower conductivity can supply you an excellent performance for metal cutting , grooving and boring.

Model Dia×Length Current Range(A) General applications

mm Inches

B503.2 3.2×305 1/8×12´ 130-180 For gouging cutting and boring.

B504 4×305(355) 5/32×12´(14´) 150-200

B505 5×305(355) 3/16×12´ 200-250

B506 6×305(355) 15/64×12(14´) 300-350

B506.5 6.5×305(355) 1/4×12´(14´) 320-370

B507 7×355 9/32×14´ 350-400

B508 8×305(355)(510) 5/16×12´(14´)(20´) 400-450

B509 9×305(355) 23/64×12´(14´) 450-500

B510 10×305(355)(510) 3/8×12´(14´)(20´) 500-550

B511 11×305(355)(510) 7/16×12´(14´)(20´) 600-650

B512 12×305(355) 15/32×12´(14´) 750-850

B513 13×305(355)(430)(510) 1/2×12´(14´)(17´)(20´) 800-1000

B516 16×355(430)(510) 5/8×14´(17´)(20´) 1000-1200

B519 19×355(430)(510) 3/4×14´(17´)(20´) 1200-1400
