Conventional ps plate
Specifications
- Brand
- Huafeng
- Origin
- Chongqing, China
- Price Term
- FOB
Conventional ps plate is a Printing Plates product. Key specs — Brand: Huafeng; Origin: Chongqing, China; Price Term: FOB.
Product Description

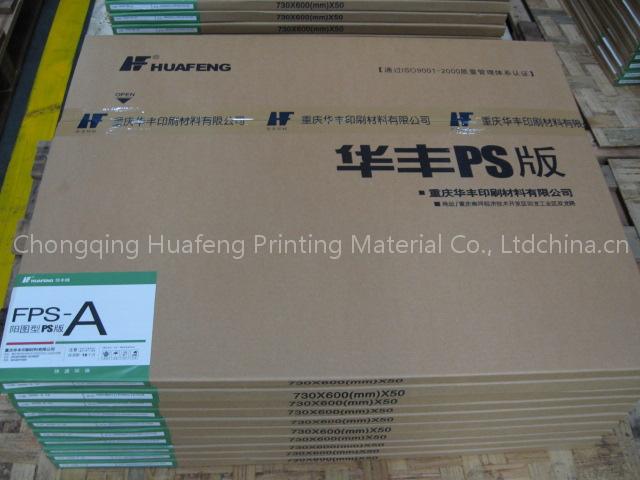

Conventional Positive Printing Plate(PS Plate)
positive offset printing plates are researched & manufactured to meet todays demanding pressroom conditions. Produced on sophisticated continuous process line using only aluminum coils of the highest standard, our inspection system & online control technology guarantees the reliability & consistency of quality.
Adopting unique combination of advanced electrochemical graining, anodizing and coating technology enhance the performance of the plate. It can come up with excellent result on the printing machine with long run impression.
Conventional positive printing plate | |
Substrate | Southwest Aluminum Roll |
Gauge | 0.15, 0.20, 0.25, 0.30, (mm) |
Maximum width | 1320mm |
Spectral sensitivity | 350 – 450nm peak sensitivity 415nm |
Recommended Ugra | Normal – Clear 2, |
Handling | Plates are light sensitive. Handle under yellow safelight (UV Free) until processed. |
Resolution per Ugra recommendations | 2-99% |
Run length | Unbaked: 50,000-80,000 copies, After Baked: over 150,000 copies (Run length depends on printing conditions like press, ink, paper and so on.) |
Process | Conventional, wth film |
Recommended | 23-25ºC |
Shelf life | 18 months when stored in a light-free area away from excessive cold, heat and high humidity |
Plate cleaner compatibility | Universal Plate Cleaner; Gum Washout Solution |
