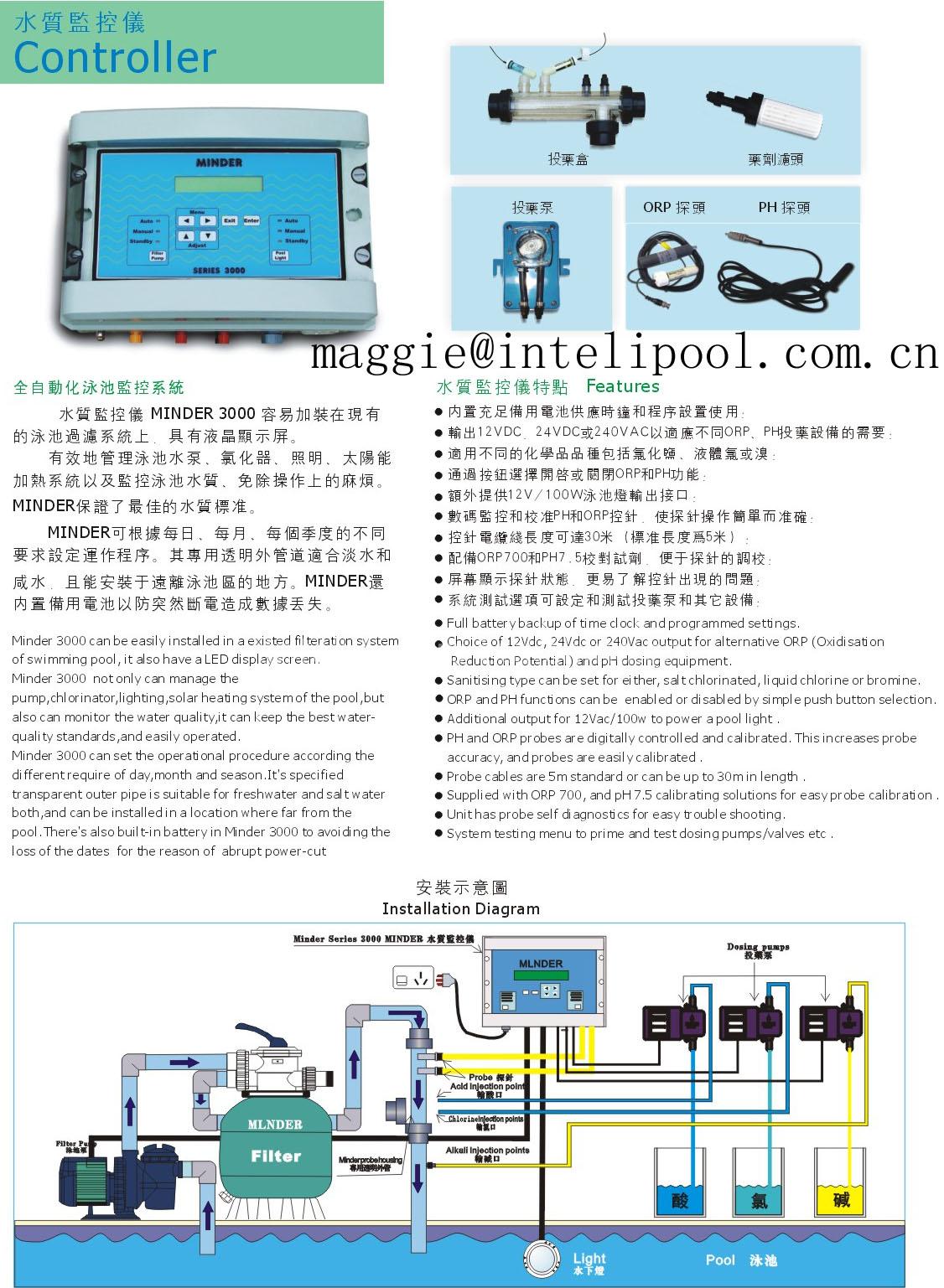

Controller, Swimming Pool Water Treatment

Controller (Minder 3000) can be easily installed in an existed filtration system of swimming pool, it has a LCD(Liquid Crystal Display) screen. Minder 3000 not only can manager the pump, chlorinator, lighting, solar heating system of the pool, but also can monitor water quality, it can keep the best water-quality standard, and easily operated.

Minder 3000 can set the operational procedure according to different require of day, month and season. It’s specified transparent outer pipe is suitable for fresh water and salt water both, and it can be installed in a location where far from the pool. There is also built-in battery in Minder 3000 to prevent data loss caused by a sudden power failure.

Controller Features:

1.Full battery backup of time clock and programmed setting.

2.Choice of 12Vdc, 24Vdc or 240Vdc output for alternative ORP(Oxidative Reduction Potential) and PH dosing equipment.

3.Sanitising type can be set for chloride salt, liquid chlorine or bromine.

4.ORP and PH function can be enable or disabled by simple push button selection.

5.Additional 12Vac/100W pool light output interface provided.

6.PH and ORP probes are digitally controlled and calibrated. This increases probe accuracy and probe can be easily calibrated.

7.Probe cables are 5 meter(standard) or can be up to 30 meter in length.

8.Supplied with ORP 700 and PH 7.5 calibrating solutions for easy probe calibration.

9.Unit has probe self diagnostics for easy trouble shooting.

10.System testing menu to set and test dosing pumps and other device.
