Listing ID#10216086
ModelLJ-1/600(800)
CategoryCeramics

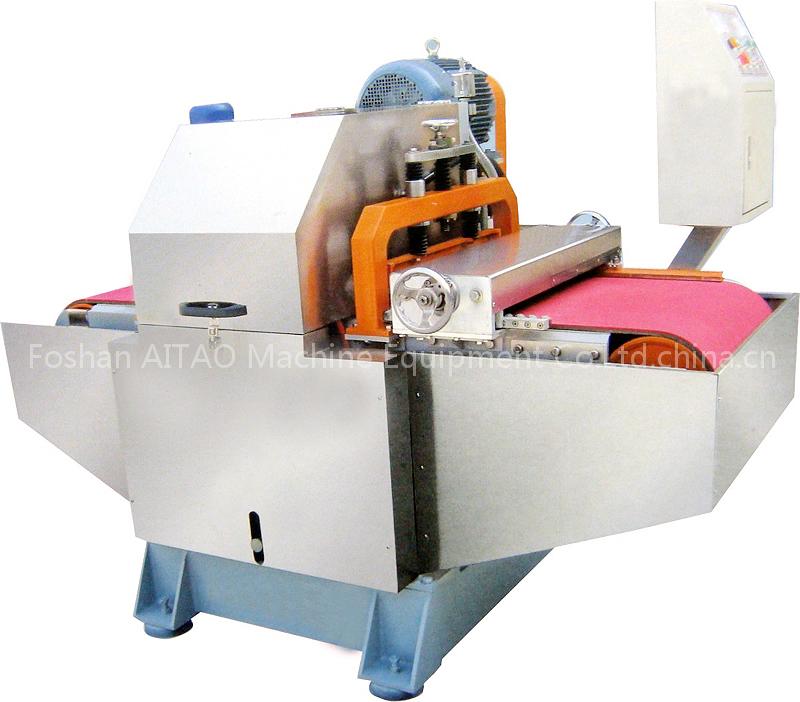

Continuous Single Blade Ceramic Brick Cutting Machine
Specifications
- Brand
- AITAO
- Origin
- China
- Price Term
- EXW
Quick answer
Continuous Single Blade Ceramic Brick Cutting Machine is a Ceramics product. Key specs — Brand: AITAO; Origin: China; Price Term: EXW.
Product Description
A).The application of the Continuous Brick Cutter With Single Blade Set:
series of ceramic brick cutting machine is suitable for cutting floor tiles and stones into narrow bricks,square brick,diamond bricks,and so on.
ceramic cutter is capable of processing bricks of different width at one time,and the Processing width is 25-600(800)mm.
brick cutter is equipped with self-made clamp straps,capable of cutting 10X10 mosaics.
4.Because the cutting machine is of rational design and high working precision, it has the advantages of high cutting efficiency,high precision and high production capacity,and so on.
B).Features of the continuous brick cutter with single blade set:
shaft box bearing pedestaluses water-cooling device for continuous operation without overheating and for longer service life of bearing.
2.V-belt guide ensures precision belt feeding.
tail grooves lifting,dual-support portal structure for more steady cutting and lower vibration.
C).The main parameters of the ceramic brick cutter:
series of ceramic brick cutting machine is suitable for cutting floor tiles and stones into narrow bricks,square brick,diamond bricks,and so on.
ceramic cutter is capable of processing bricks of different width at one time,and the Processing width is 25-600(800)mm.
brick cutter is equipped with self-made clamp straps,capable of cutting 10X10 mosaics.
4.Because the cutting machine is of rational design and high working precision, it has the advantages of high cutting efficiency,high precision and high production capacity,and so on.
B).Features of the continuous brick cutter with single blade set:
shaft box bearing pedestaluses water-cooling device for continuous operation without overheating and for longer service life of bearing.
2.V-belt guide ensures precision belt feeding.
tail grooves lifting,dual-support portal structure for more steady cutting and lower vibration.
C).The main parameters of the ceramic brick cutter:
Machine model | Number of main shaft | Belt width | Blade diameter | Power of main shaft motor | Power of belt moter | Speed Range of conveying belt | Power of lifting montor | Cutting width range | Maximum cuttng thickness | Overall power | Overall dimensions(LxWxH) | Weight |
LJ.1/ 600 | 1 | 620 mm | Φ250 -Φ300 mm | 15kw | 0.75 kw | 0.8- 4.0m /min | 0.75 kw | 20- 600 mm | 20mm | 16.5 kw | 2110x 1580x 1630 mm | 1600 kg |
LJ.1/ 800 | 1 | 820 mm | Φ250 -Φ300 mm | 15kw | 0.75 kw | 0.8- 4.0m /min | 0.75 kw | 20- 800 mm | 20mm | 16.5 kw | 2110x 1780x 1630 mm | 1800 kg |
