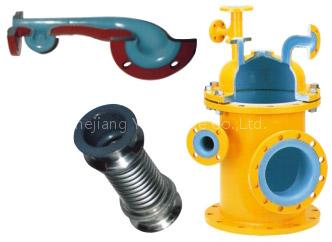

Container, tower and tank

1. Holding skilled process technology, including isotactic molding process, Hot welding process, etc., we can produce any kind of customizedPTFE lined equipments, formed by horizontal winding and vertical winding, whose the branch length is from 100mm and the position of branch pipe is with out limit 2.

Top and bottom seal heads and container body can be lined respectively, so be lined whole container. The depth of Elliptic seal head about one-sixth of its diameter. 3.

The lined inner wall of steel shell is very smooth, and the fillet radius of instrument tongued flange is from 6mm to 10mm and the fillet radius of branch pipe and tongued falnge is from 3mm to 5mm. 4. After lined with PTFE, used porcelain enamel boilers can be applied again. 5.

Main materials lined with products steel lined with PTFE (PTFE/Steel), steel lined with PO (PO/Steel), steel lined with PP (PP/Steel), Steel lined with PPS(PPS/Steel), steel lined with PE (PE/Steel). 6. thickness of lining. PTFE:2~3mm, PO:4~8mm, PPS:4~8mm, PE:4~8mm 7.

Test and inspection of Container:spark coil leak detector with outputvoltage of 25KV and frequency of 1.9 MHz. If the probe with a speed of 50mm/s, do not pierce the PTFE lining, the tested product is qualified.
